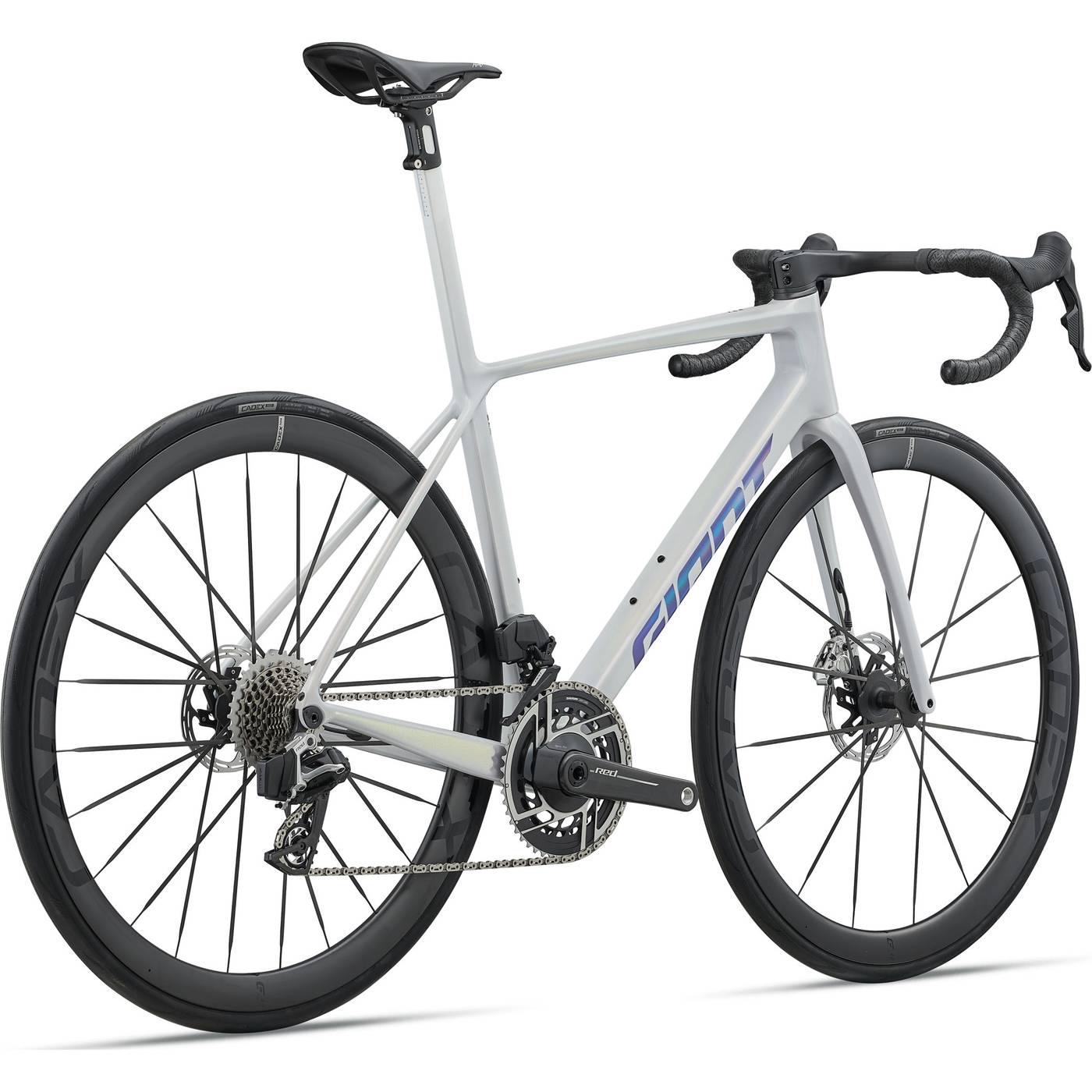

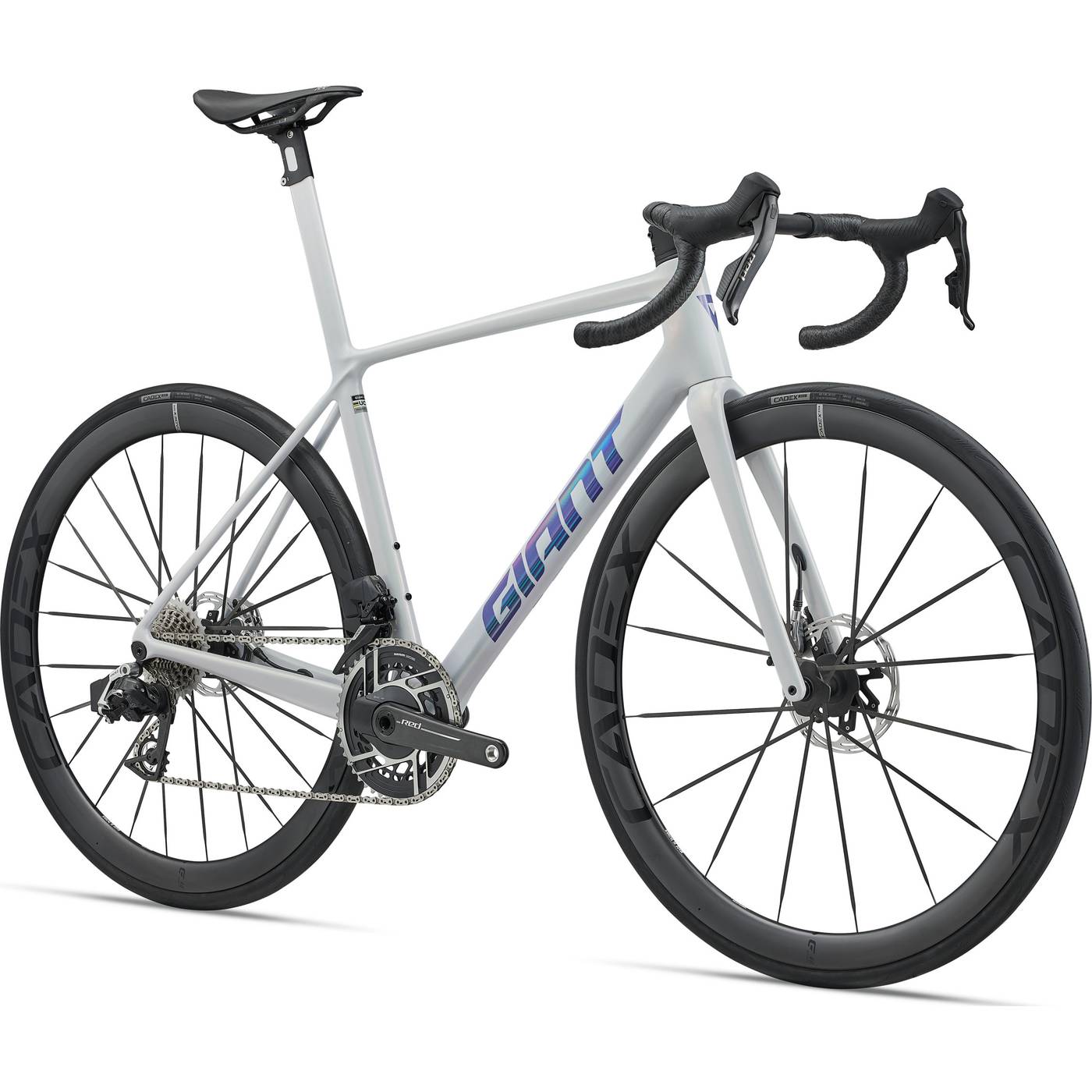

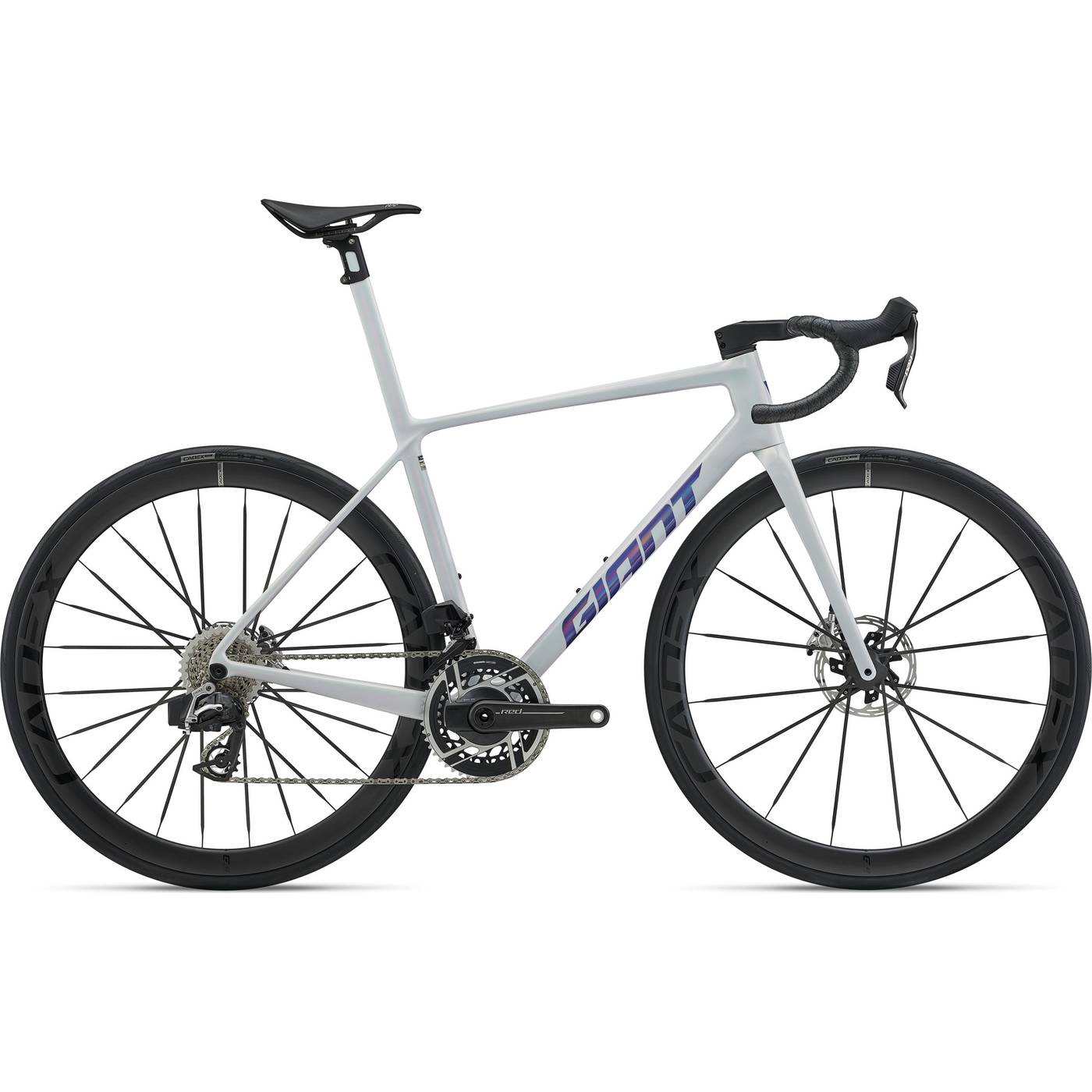

Giant TCR Advanced SL 0-Red Road Bike

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

• SYSTEM OPTIMIZATION: The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
• WINNING EFFICIENCY: Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
• INTEGRATED AERODYNAMICS: From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Features

• Advanced SL Composite Technology: Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

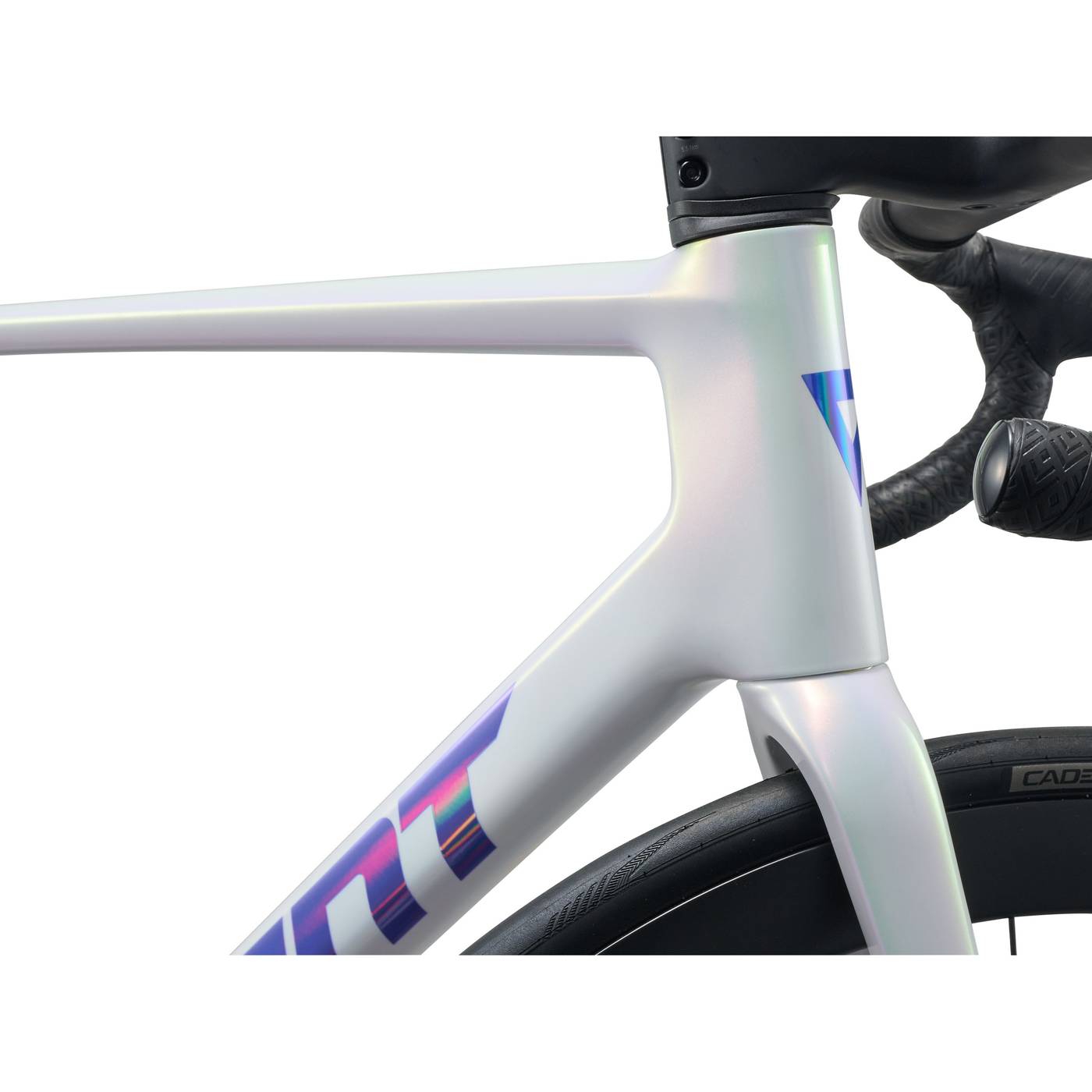

• OverDrive Aero: Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Compact Road Design: Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
• Integrated Seatpost: Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 40 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

• Sizes: S, M, M/L, L
• Colours: Gloss Prism Pearl/Iris
• Frame: Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc

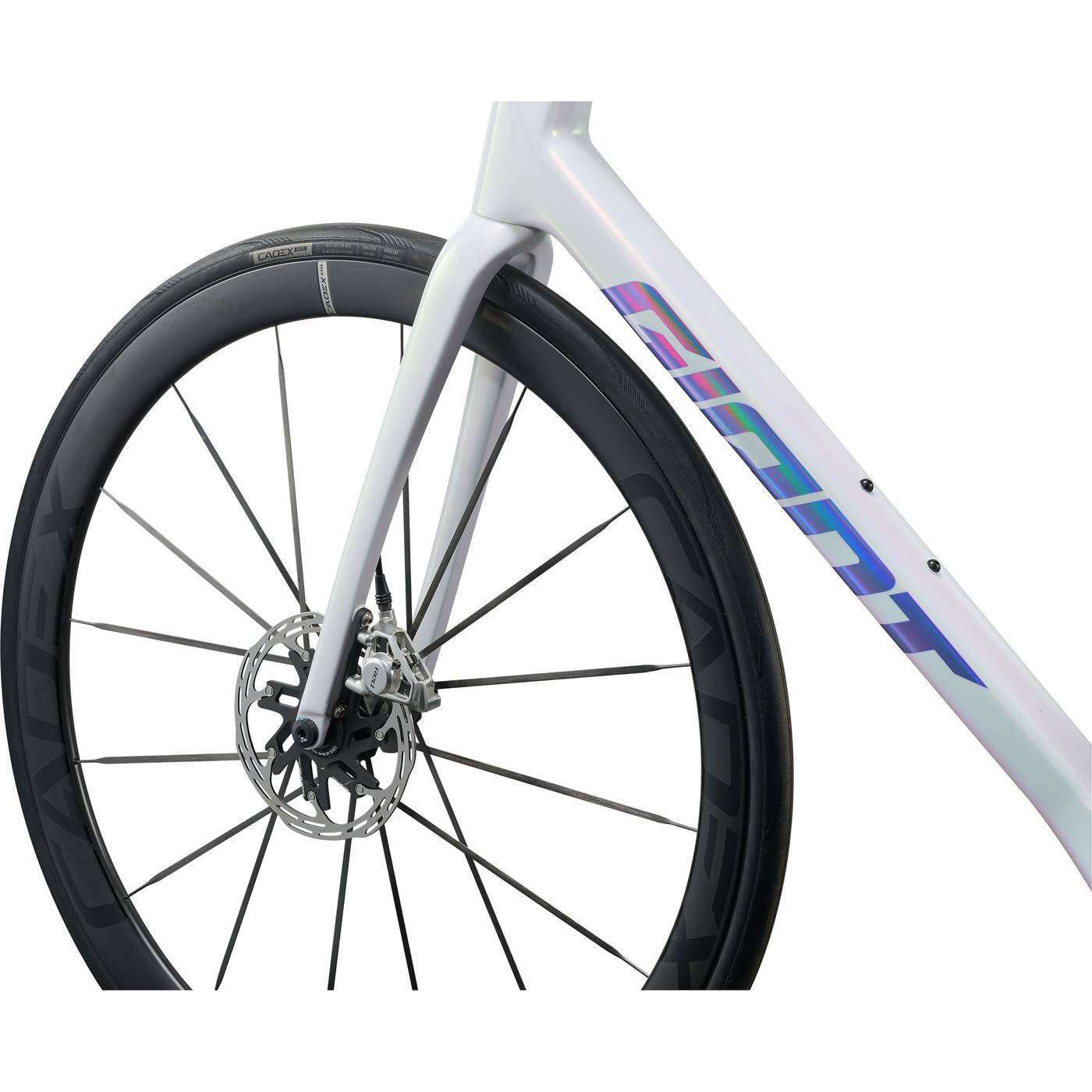

• Fork: Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

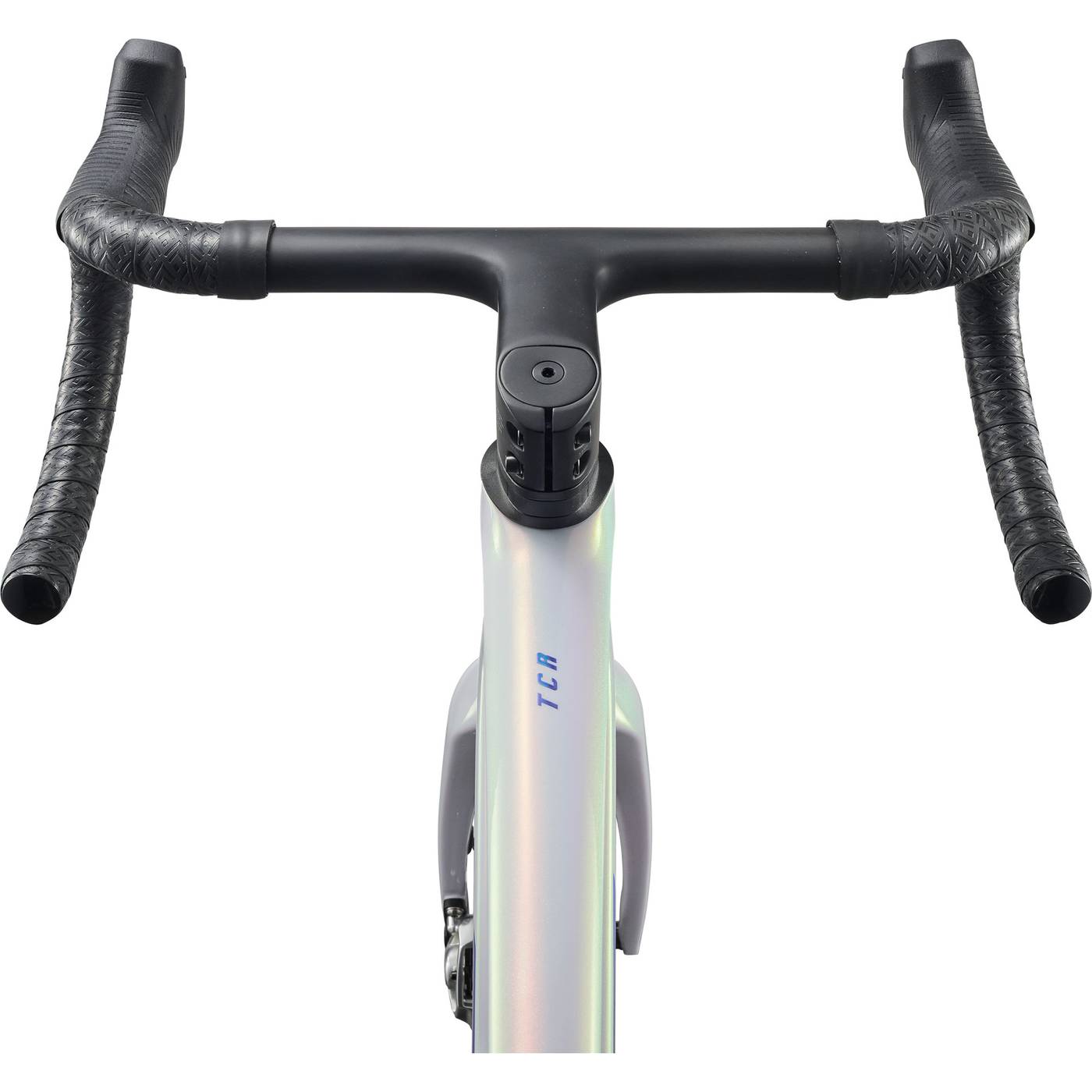

• Handlebar: CADEX Race Integrated S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm
• Grips: Stratus Lite 2.0
• Stem: CADEX Race Integrated S:90mm, M:100mm, M/L:110mm, L:110mm
• Seatpost: Giant Integrated Seatpost, -5/+15mm offset
• Saddle: CADEX AMP
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM RED AXS E1
• Front Derailleur: SRAM RED AXS E1
• Rear Derailleur: SRAM RED AXS E1
• Brakes: SRAM RED E1 hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
• Brake Levers: SRAM RED AXS E1
• Cassette: SRAM RED, 12-speed, 10x33
• Chain: SRAM RED E1, 12-speed

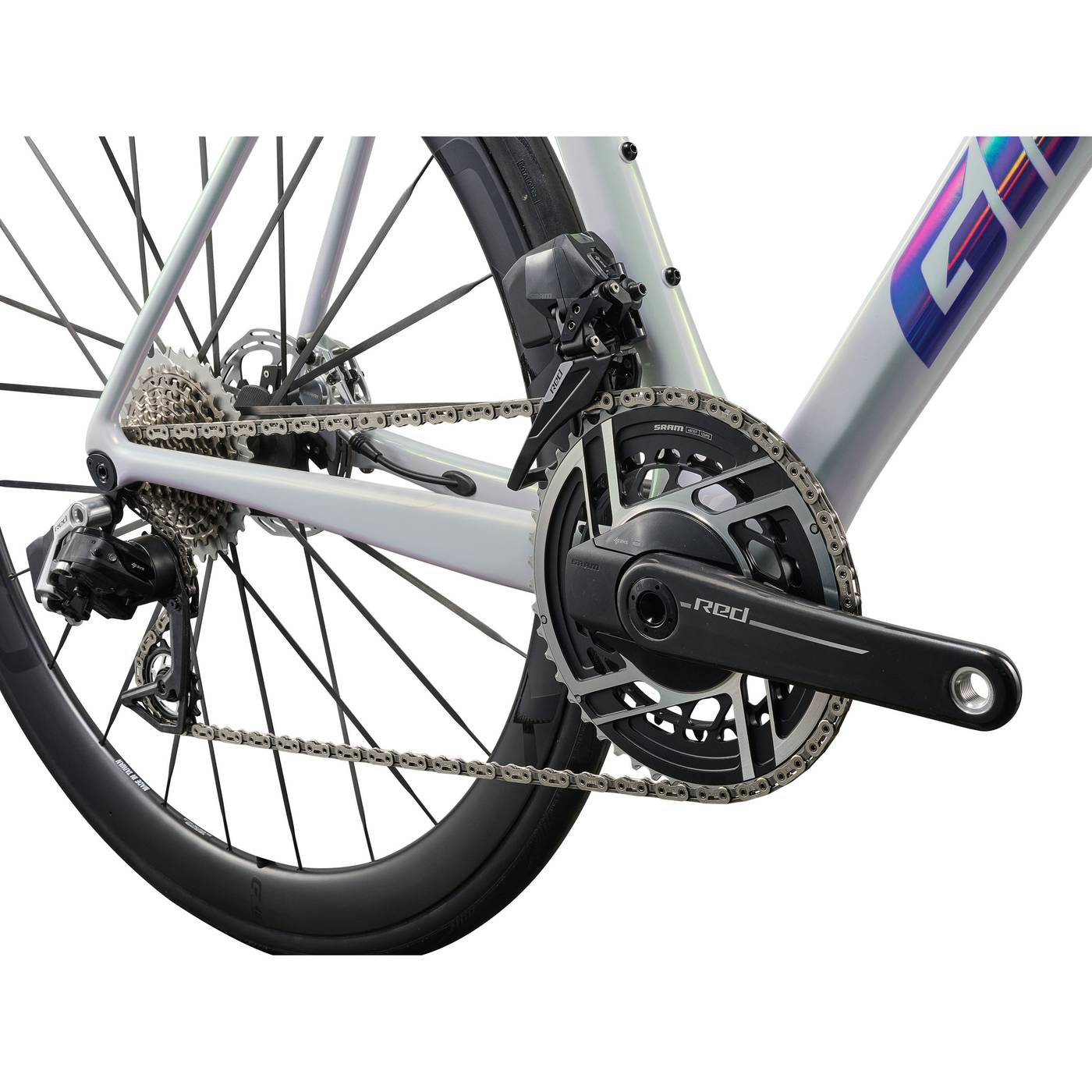

• Crankset: SRAM RED E1 DUB, 35/48 with integrated Quarq Power Meter S:165mm, M:170mm, M/L:170mm, L:172.5mm
• Bottom Bracket: SRAM DUB ceramic, press fit
• Rims: CADEX Max 40 WheelSystem, [F]40mm, [R]40mm
• Hubs: "[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle"
• Spokes: CADEX Aero Carbon Spoke
• Tyres: CADEX Road Race GC, tubeless, 700x30mm, folding
• Extras: Computer mount, factory tubeless set up, 33mm max tyre size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

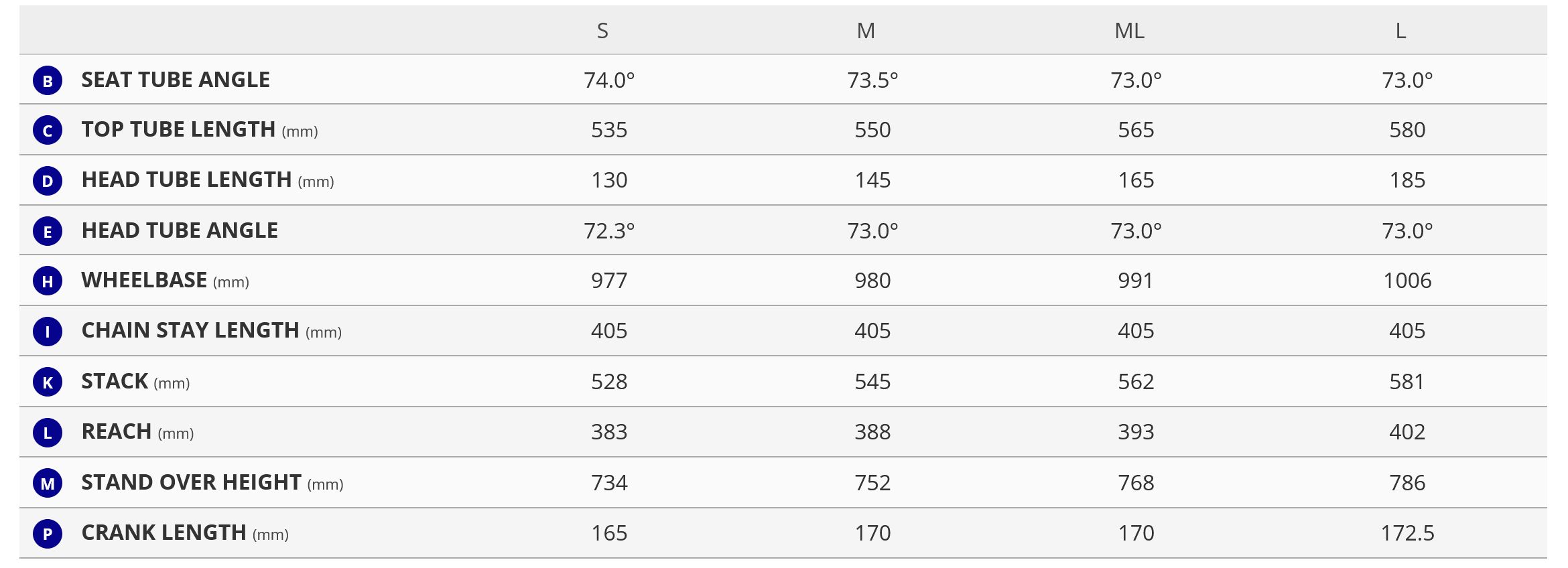

Size Chart
