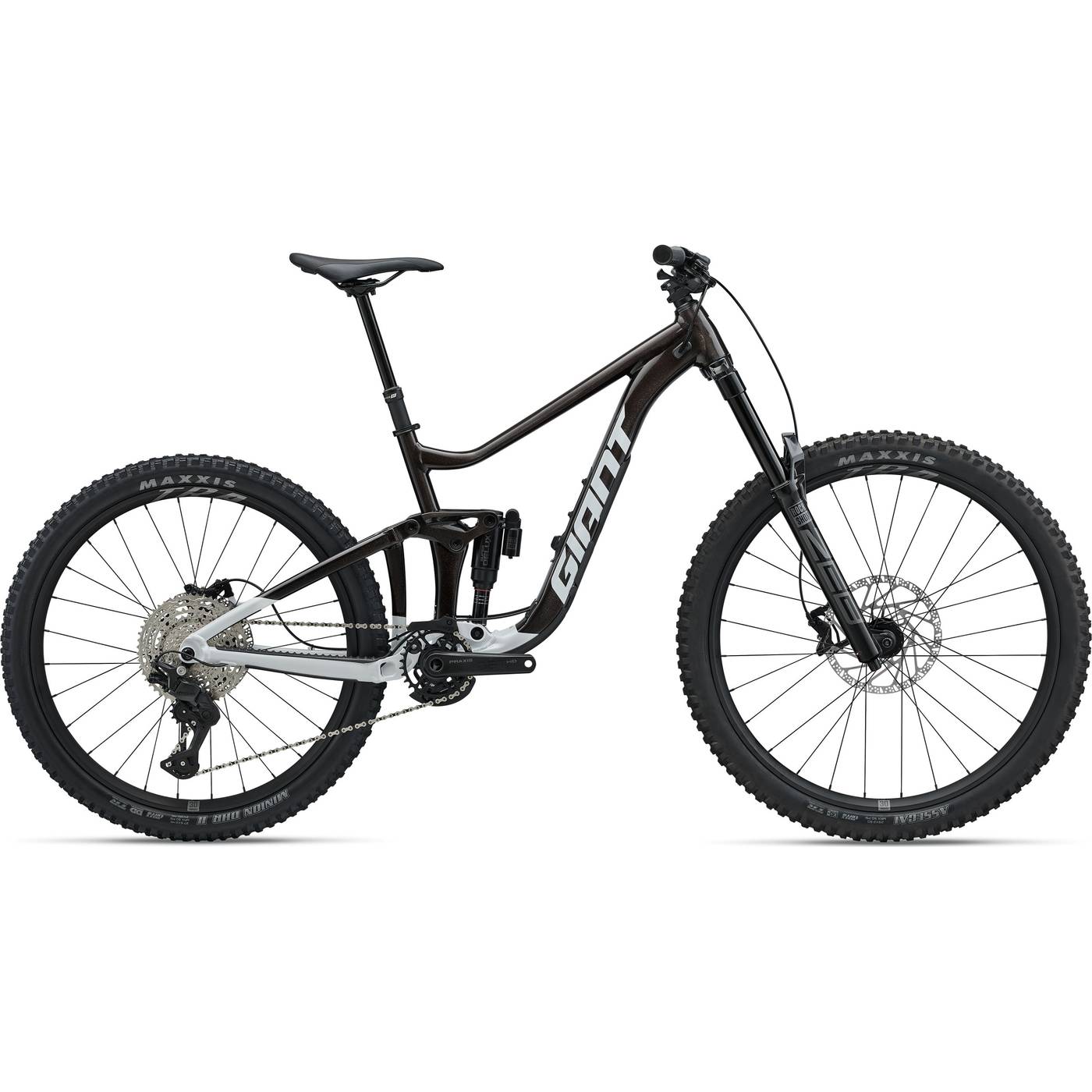

Giant Reign Full Suspension Mountain Bike

Features

• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• ALUXX SL Aluminium Technology: This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
• OverDrive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Flip Chip - Maestro 3: This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

• Sizes: S, M, L, XL
• Colours: Gloss Obsidian Pulse/White
• Frame: ALUXX SL-Grade Aluminium front and rear triangles, Maestro Suspension, 160mm travel, 12x148mm thru-axle, integrated storage solution frame size S/XL: 29"F & 29"R commercial spec and 27.5" rear wheel compatible
• Fork: NEW RockShox Zeb Delta RC damper 29"Boost 15x110 Maxle Stealth 170mm
• Shock: RockShox SuperDeluxe, R, 205x62,5, custom tuned for Giant, recommended sag 30%
• Handlebar: Giant Contact TR35, 800x35mm, 35mm rise,AL6061
• Grips: Giant Tactal Pro, single, lock-on
• Stem: Giant Contact SL 35, Diameter 35mm, 8 degree
• Seatpost: Contact Switch AT DSP with remote lever, 30,9mm
• Saddle: Giant Romero
• Pedals: Al body/AL cage Platform (GC,GT)
• Headset: NO57
• Shifters: NEW Shimano Deore SL M6200, 1x12
• Rear Derailleur: NEW Shimano Deore RD M7200, Shadow +
• Brakes: TRP EVO Comp, black HD-M7040 4 piston
• Brake Levers: TRP EVO Comp
• Cassette: NEW Shimano Deore, CS M6200 10x51
• Chain: KMC X12
• Crankset: Praxis Cadet HD M24 Boost, 32T, steel chainring, 55mm chainline with NEW MRP AMg CS Guide, Next generation upper guide
• Bottom Bracket: Shimano PressFit Praxis Pressfit
• Rims: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
• Hubs: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
• Spokes: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
• Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR [R] Maxxis Minion DHR II 29 27.5x2,4WT, 3C MaxxTerra, DD 2x60 TPI TR
• Extras: MRP AMG CS chain guide for all GSC's, Tubeless Prepared, maximum tyre size 2.5", maximum chainring size 36T
• Max Tyre Clearance: 29x2.5"
• Max Chainring Size: 36T
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

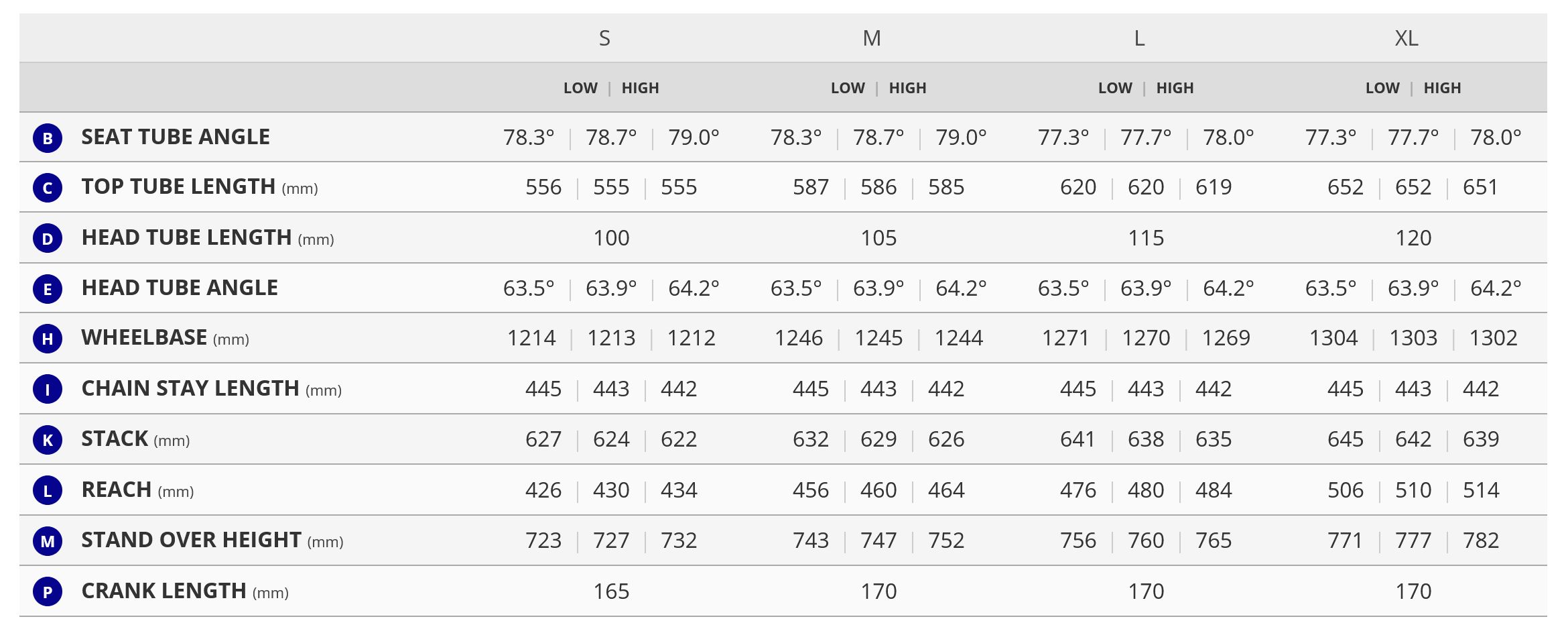

Size Chart
