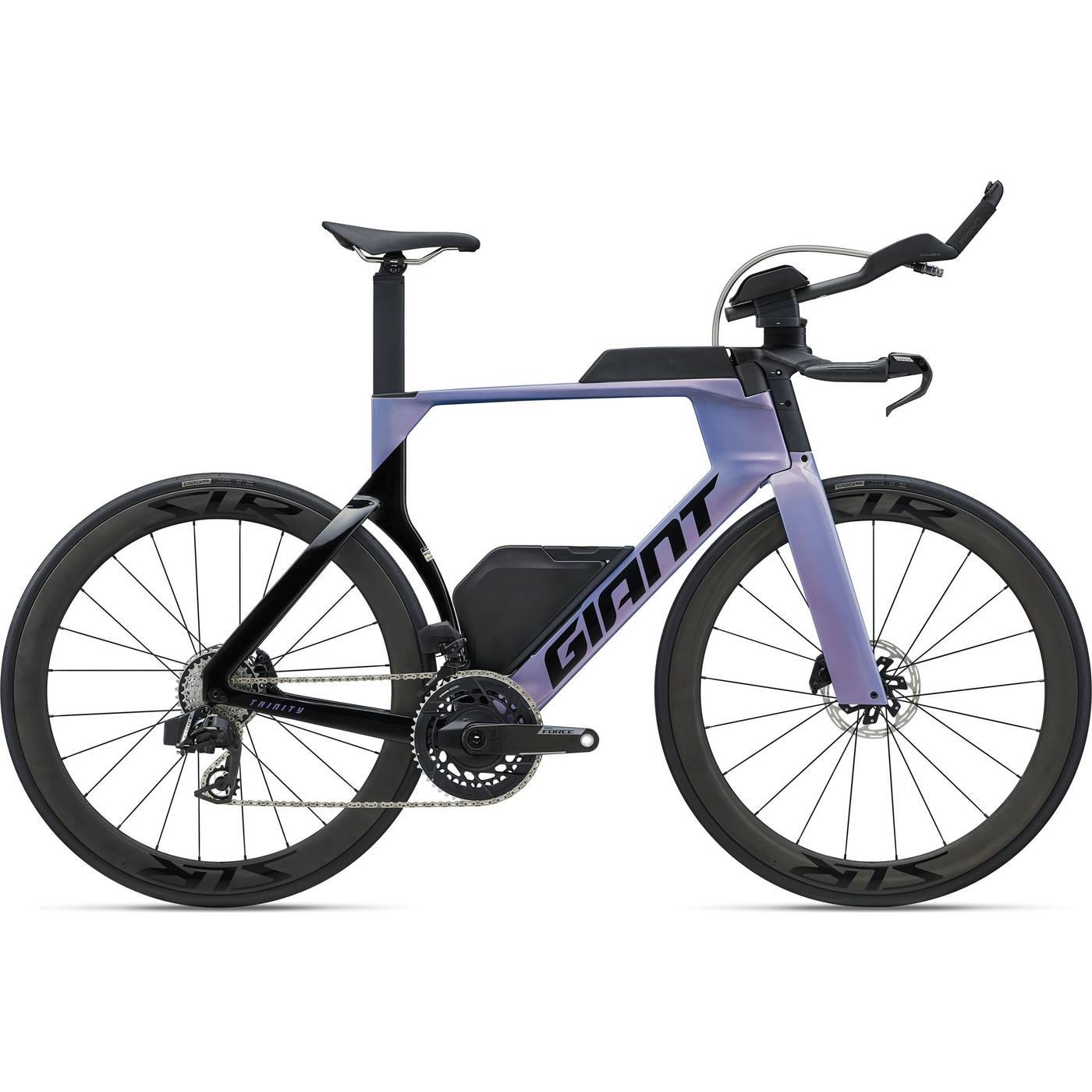

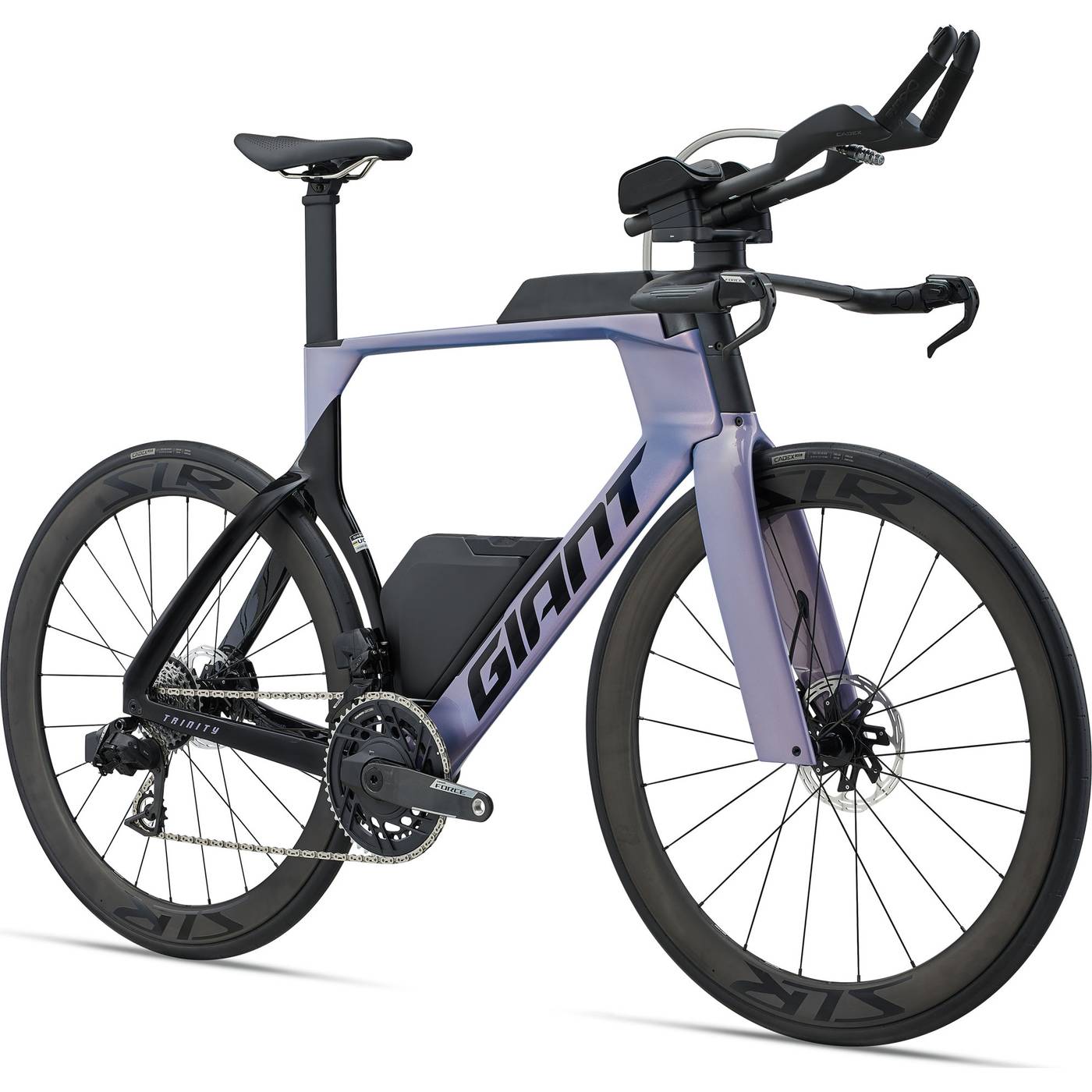

Giant Trinity Advanced SL 1 TT Bike

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

• FULL-SPEED DYNAMICS: All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
• ULTIMATE AERO EFFICIENCY: AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.
• PERSONALIZED FIT: With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

Features

• Advanced SL Composite Technology: Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.
• AeroSystem Shaping Technology: Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
• PowerCore: A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
• Tubeless System: Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

• Sizes: XS, S, M, L
• Colours: Gloss Ember Violet/Black
• Frame: Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc
• Fork: Advanced SL-grade composite, full-composite steerer, 12x100mm thru-axle, disc
• Handlebar: Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
• Grips: Stratus Lite 2.0
• Stem: Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
• Seatpost: Trinity composite
• Saddle: Giant Contact SL Tri
• Pedals: PEDALS NOT SUPPLIED
• Shifters: SRAM Clics - extension mounted, SRAM Blips - basebar mounted
• Front Derailleur: SRAM Force AXS
• Rear Derailleur: SRAM Force AXS E1
• Brakes: SRAM Force Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers: SRAM Force Aero AXS
• Cassette: SRAM Force E1, 12-speed, 10x33
• Chain: SRAM Force E1
• Crankset: SRAM Force E1 AXS, 37/50 with SRAM power meter XS:165mm, S:170mm, M:170mm, L:172.5mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant SLR 1 50 WheelSystem, [F]50mm, [R]50mm
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
• Spokes: SAPIM CX-Ray
• Tyres: CADEX Aero, tubeless, 700x28c, folding
• Extras: Bento box top tube storage, hydration kit, computer mount, tubeless prepared
• Max Tyre Clearance: 30mm
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

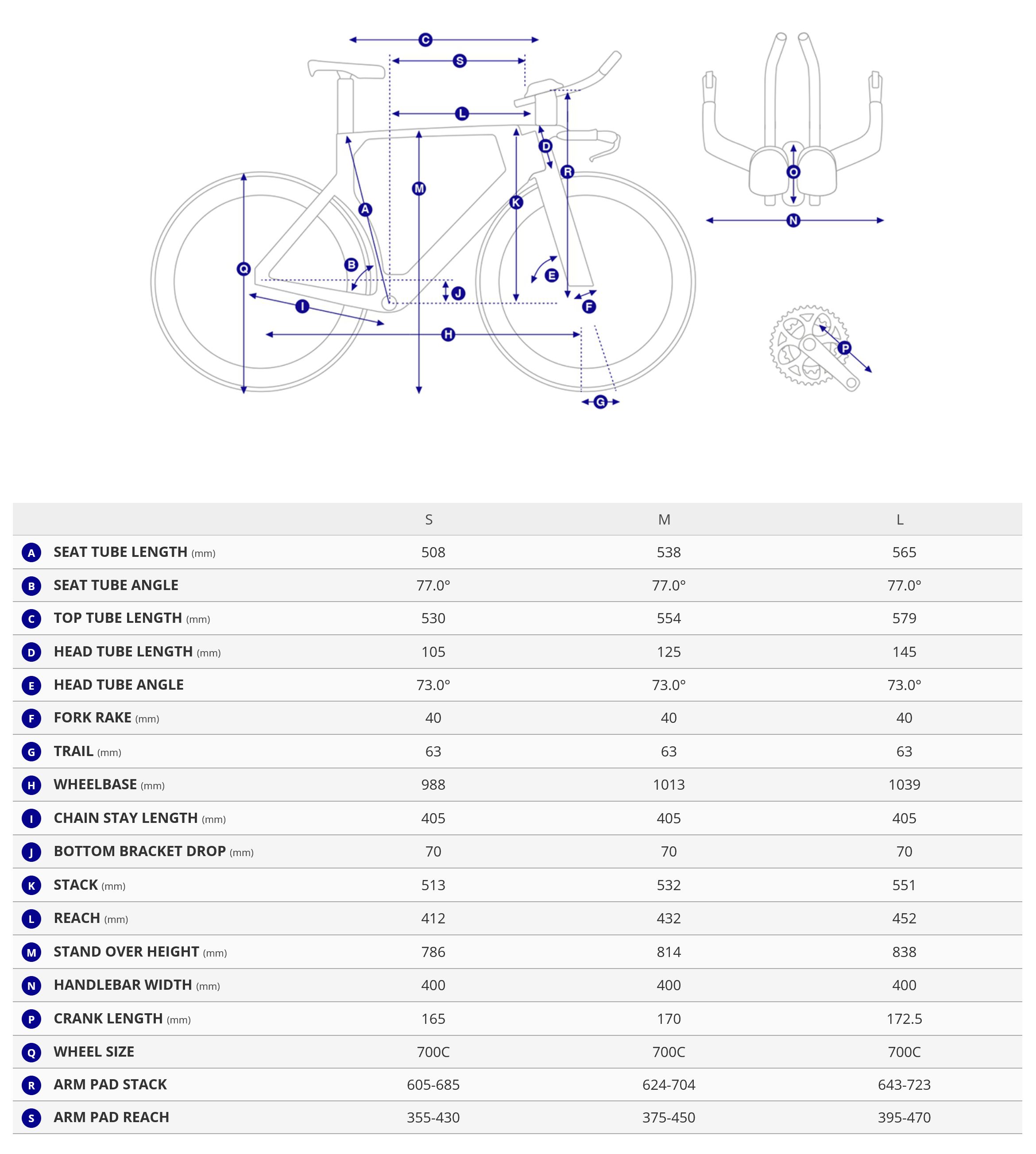

Size Chart
