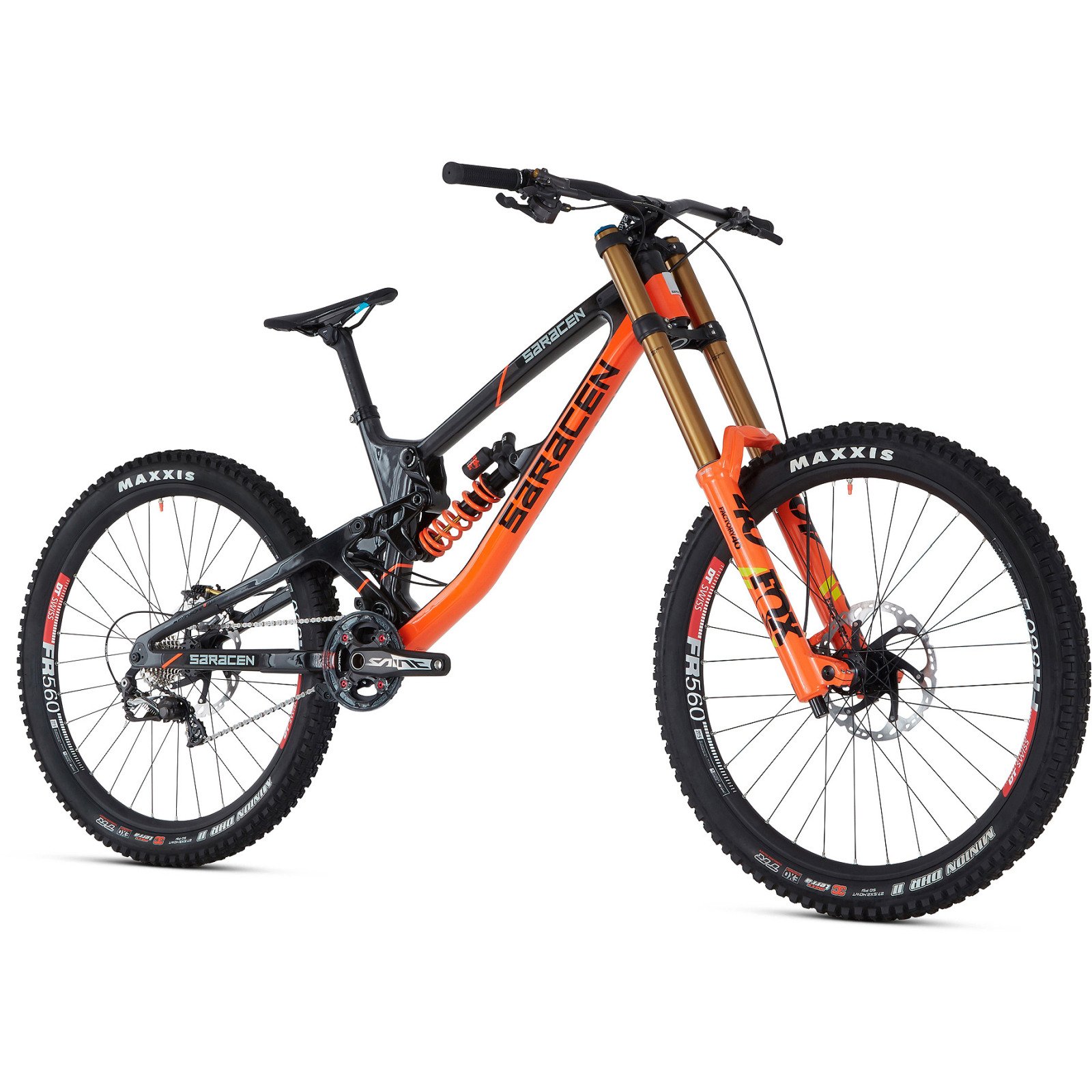

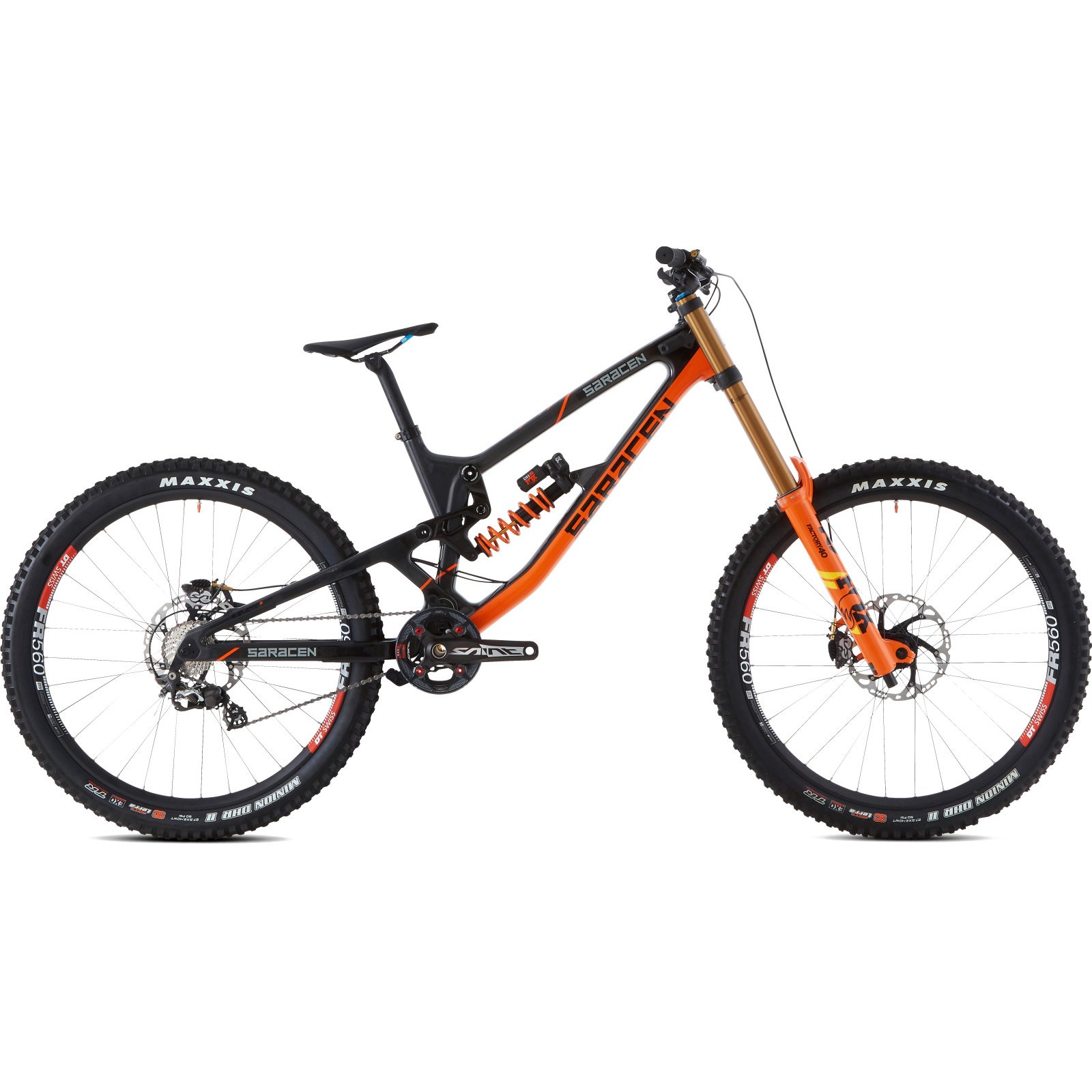

Saracen Myst Team Factory 27.5 DH Monutain Bike

€6,495.00

Add to Basket

Designing a new chassis is no easy feat, especially when you are designing it to be ridden by some of the worlds fastest riders - the Madison Saracen Factory lads. Constant feedback from the whole team allows us to produce race ready product straight out of the box. With a custom +/- 5mm headset and 15mm of rear chainstay adjustment, really helps get the bike dialled in for every type of track.

Specifications:

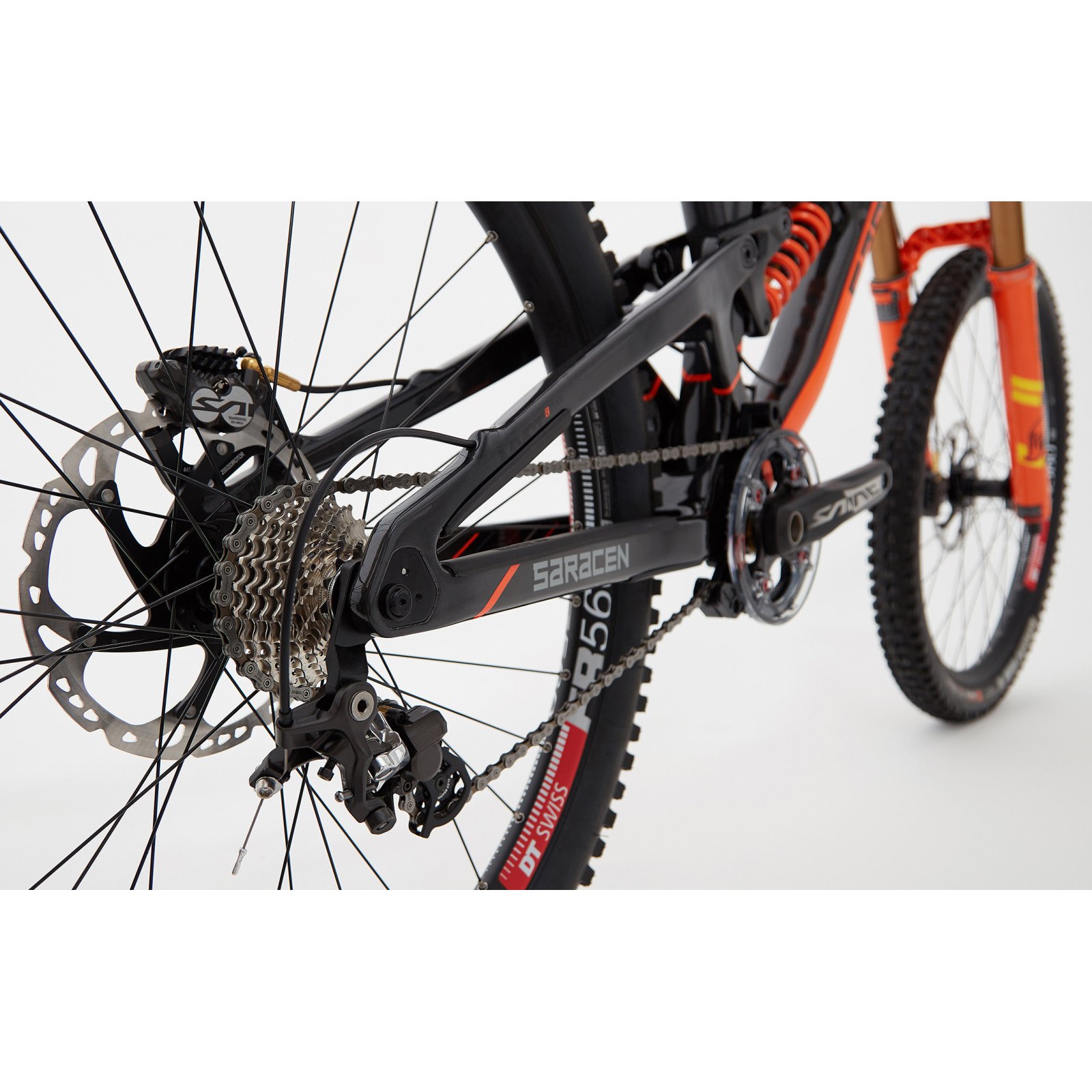

Frame: 24T/40T/3K Toray UD carbon blend / Optimised Factory Racing sizing / 37mm main pivot bearings / 28mm linkage bearings / UD carbon linkage / signature TRL suspension design 27.5 specific / custom headtube with adjustable front centre plus-minus 5mm / internal cable routing / integrated fork bump-stops / 12 x 157mm rear axle / 203mm travel
Rear Shock: Fox DHX2 Factory / Kashima / HSC/LSC / RVS / SLS spring

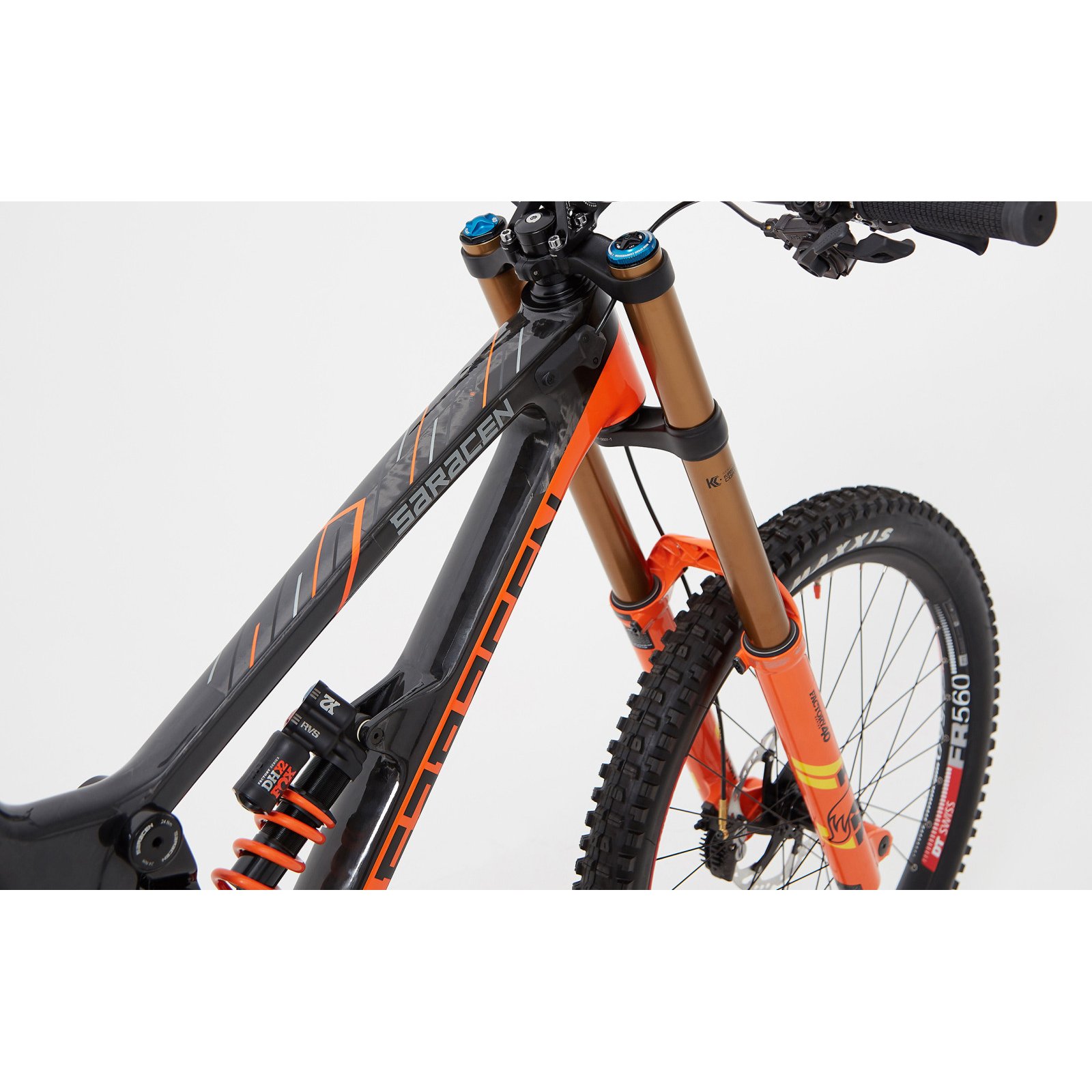

Fork: Fox 40 Float Factory / Kashima / 203mm travel / FIT GRIP2 / 4-way high-and low-speed compression / tapered steerer / 20TAx110 DH
Headset: Saracen off-set headset / 0mm / 5mm
Shifters: Shimano Saint M820 Rapidfire Plus 1x10 speed
Rear Derailleur: Shimano Saint M820 Shadow Plus
Front Derailleur: Gamut P30s
Chainset: Shimano Saint M825 36T / 165mm
Bottom Bracket: Shimano SM-BB80
Chain: Shimano HG54
Cassette / Freewheel: Shimano HG500 10 speed cassette 11-25T
Rims: DT Swiss FR560 27.5 32h
Hubs: Shimano Saint M820 32h front / KT DHR215 sealed bearing 32h rear / Saracen Taper-Lock axle
Spokes: Double-butted stainless steel
Tyres: Maxxis Minion DHR II 3C/EXO/TR / 27.5 x 2.4&qout; front / rear
Brakes: Shimano M820 203/203mm
Brake levers: Shimano Saint M820
Handlebars: PRO Tharsis 9.8 7050 DB alloy riser bar / 800mm wide /20mm rise / 5 degree up bend / 9 degree back bend
Grips / Tape: Saracen lock-on grip
Stem: PRO Tharsis 9.8 / 50mm / direct mount / 0 degree rise / 31.8mm clamp
Saddle: PRO Tharsis 9.8
Seatpost: PRO Tharsis 9.8 / 30.9mm
Pedals: Alloy MTB / sealed bearings / replaceable pins
Weight: 15.81
