With the Stereo Hybrid 120 Race, comfortable, ground-hugging suspension combined with intuitive handling and reliable, fuss-free performance are all part of the deal. We combined Bosch's fourth-generation CX drive unit and a 625Wh battery with an easy-to-use 1x12 drivetrain for simple trail-taming power. It's all you need for trail adventures.

Features

• There's some clever stuff going on inside the Stereo Hybrid 120's sleek frame. Our Modular Battery System tucks the battery out of sight - and out of the way of dust and water.

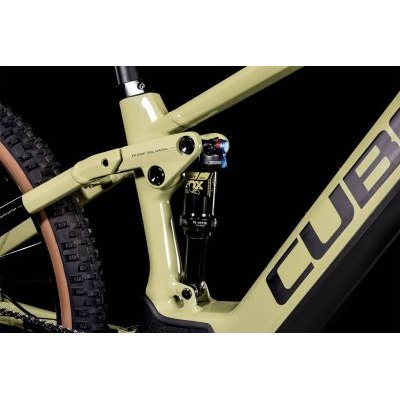

• The refined four-bar suspension design keeps you isolated from trail shocks and vibration, and we wrapped the whole lot in our Comfort Geometry - with a stiffness-enhancing Boost 148 rear end and 1.5in head tube - for easy handling.
• We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand.
• And our Size Split system means there's a Stereo Hybrid 120 to suit every rider.

Specification

• SIZE: Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")
• FRAME: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
• FORK: [Fox Next Generation, Embargo until 31.08.21]
• SHOCK: Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
• SHOCK HARDWARE: Top: 54mm Trunnion Mount, Bottom: 30x8mm
• DRIVE UNIT: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerTube 625
• DISPLAY: Bosch Purion
• CHARGER: Bosch 2A
• BRAKE SYSTEM: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano Deore SL-M6100, Rapidfire-Plus

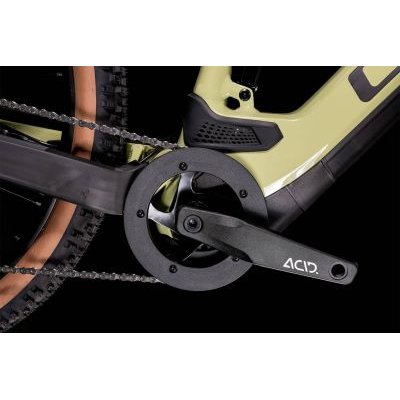

• CRANKSET: ACID E-Crank, 170mm, 38T
• CASSETTE: Shimano Deore CS-M6100, 10-51T
• CHAIN: Shimano CN-M6100
• FRONT HUB: Shimano HB-MT400-B, 15mm, Boost, Centerlock
• REAR HUB: Shimano FH-MT410-B, 12mm, Boost, Centerlock
• RIMS: CUBE EX30, 32H, Disc, Tubeless Ready
• TYRES: Schwalbe Smart Sam, Active, 2.6
• STEM: CUBE Performance Stem E-MTB, 31.8mm
• HANDLEBAR: Newmen Evolution SL 318.25, 760mm
• GRIPS: Natural Fit All Terrain
• SEAT POST: CUBE Performance Post, 30.9mm
• SEATCLAMP: CUBE Screwlock Semi Integrated, 34.9mm
• SADDLE: Natural Fit Sequence
• HEADSET: 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• PEDALS: CUBE PP MTB
• WEIGHT: 25 kg:
