With clever design and the smooth power of Bosch's fourth-generation Cargo Line drive system, the Cargo Sport Hybrid rewrites the bicycle rule book. Want to carry your kids in safety and comfort? Simply add the optional child seat with integrated seat belts. Weather not looking so great? Clip on the optional rain cover to help keep your cargo - or your kids - dry. Bright LED lights front and rear ensure you can see and be seen, mudguards and grippy tyres make light work of wet streets, and powerful Magura hydraulic disc brakes ensure you're always in control, whatever the weather. Add the smooth reliability and wide range of Shimano's 10-speed Deore gears and the comfort of a suspension fork, and it's easy to see why more people are choosing to ditch the car.

Features

• Most bikes are designed to carry a person and, perhaps, a little luggage.
• The Cargo Hybrid is a different beast, built with a maximum system weight of 220kg - which means it's capable of carrying bulky loads, or even two children with the optional seat, in safety and comfort.
• Handling is stable and confidence-inspiring even when fully loaded, so navigating city streets is a breeze.
• We positioned the powerful, cargo-specific Bosch drive unit unobtrusively at the base of the seat tube, and there's room for up to two batteries close to the bike's centre of gravity.

Specification

• SIZE: One Size
• FORK: SR Suntour MOBIE CARGO, 80mm
• DRIVE UNIT: Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt)
• BATTERY: Bosch PowerPack 500
• DISPLAY: Bosch Intuvia
• CHARGER: Bosch 2A
• BRAKE SYSTEM: Magura CMe, Hydr. Disc Brake (180/203)
• REAR DERAILLEUR: Shimano Deore RD-M5120-SGS, 10-speed
• SHIFTERS: Shimano Deore SL-M4100
• CRANKSET: ACID E-Crank, 170mm, 38T
• CASSETTE: Shimano Deore CS-M4100, 11-46T
• CHAIN: KMC X10
• FRONT HUB: Shimano HB-MT400, 15x100mm , Centerlock
• REAR HUB: Shimano Deore FH-M6000, QR, Centerlock
• RIMS: CUBE EX30, 32H, Disc, Tubeless Ready
• FRONT TIRE: Schwalbe Pick-Up, Super Defense, 60-406
• REAR TIRE: Schwalbe Pick-Up, Super Defense, 65-584
• STEM: BySchulz Speedlifter Classic
• HANDLEBAR: CUBE Comfort Trail Bar, 680mm
• GRIPS: Natural Fit Comfort
• SEAT POST: Newmen Evolution, 30.9mm
• SEATCLAMP: CUBE Varioclose, 34.9mm
• SADDLE: Natural Fit Sequence+ Comfort
• HEADSET: Cube H835D3, semi-integrated with sealed bearings and Cane Creek Viscoset
• PEDALS: CUBE PP MTB
• FRONT LIGHT: ACID Front Light PRO-E 110, 5-16V, DC
• REAR LIGHT: ACID Mudguard Rear Light PRO-E, 12V, DC
• KICKSTAND: Cargo Kickstand
• MUDGUARDS: ACID 75
• BELL: Humpert
• WEIGHT: 45,5 kg

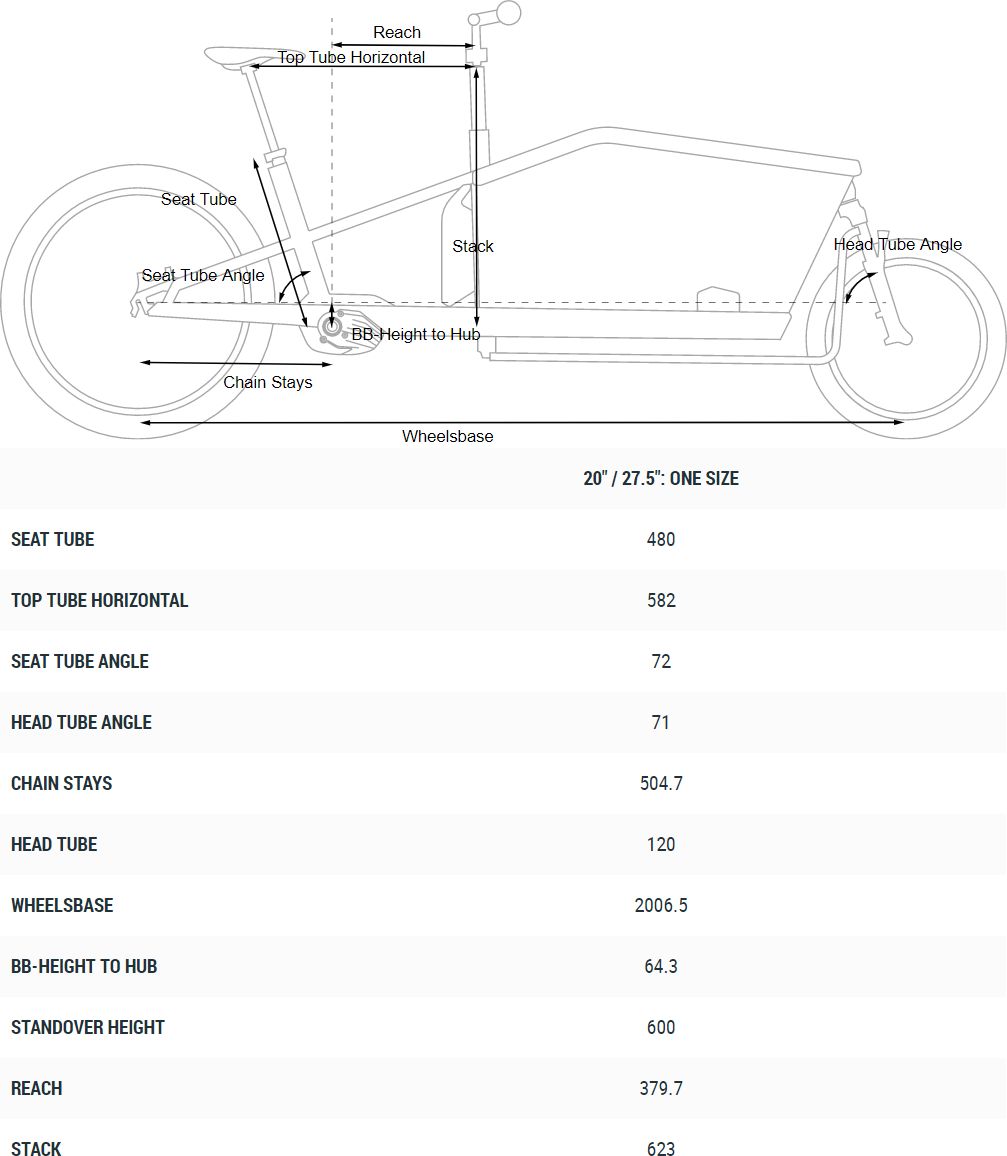

Geometry
