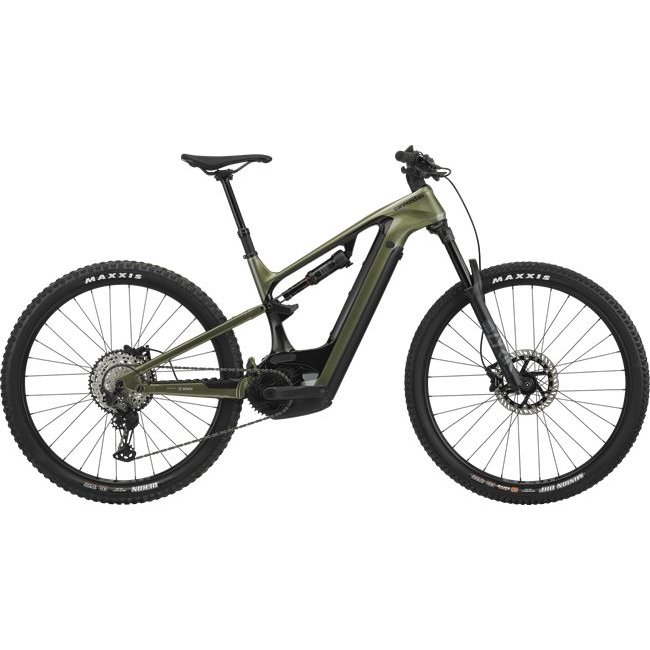

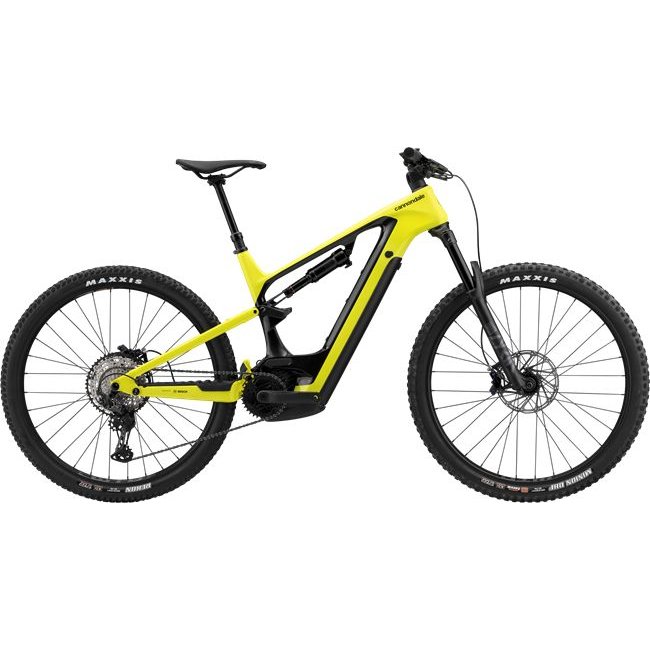

Cannondale Moterra Neo Carbon 2 Electric Mountain Bike

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Specifications

• Frame: Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5? ? 1.8? tapered headtube, 18mm two-bolt kickstand mount
• Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
• Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
• Rims: WTB ST i30 TCS, 32h, tubeless ready
• Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
• Spokes: DT Swiss Champion
• Tires: (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
• Pedals: Not included
• Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Chain: Shimano SLX, 12-speed
• Rear Cogs: Shimano SLX, 10-51, 12-speed
• Rear Derailleur: Shimano XT
• Shifters: Shimano SLX, 12-speed
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
• Grips: Fabric FunGuy
• Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
• Headset: Acros integrated sealed bearing, tapered
• E-Bike: Charger Bosch 4A
• Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
• Saddle: Fabric Scoop Shallow Sport, steel rails
• Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
• Sizes: SM, MD, LG, XL
• Extra:(s) Preinstalled light cable

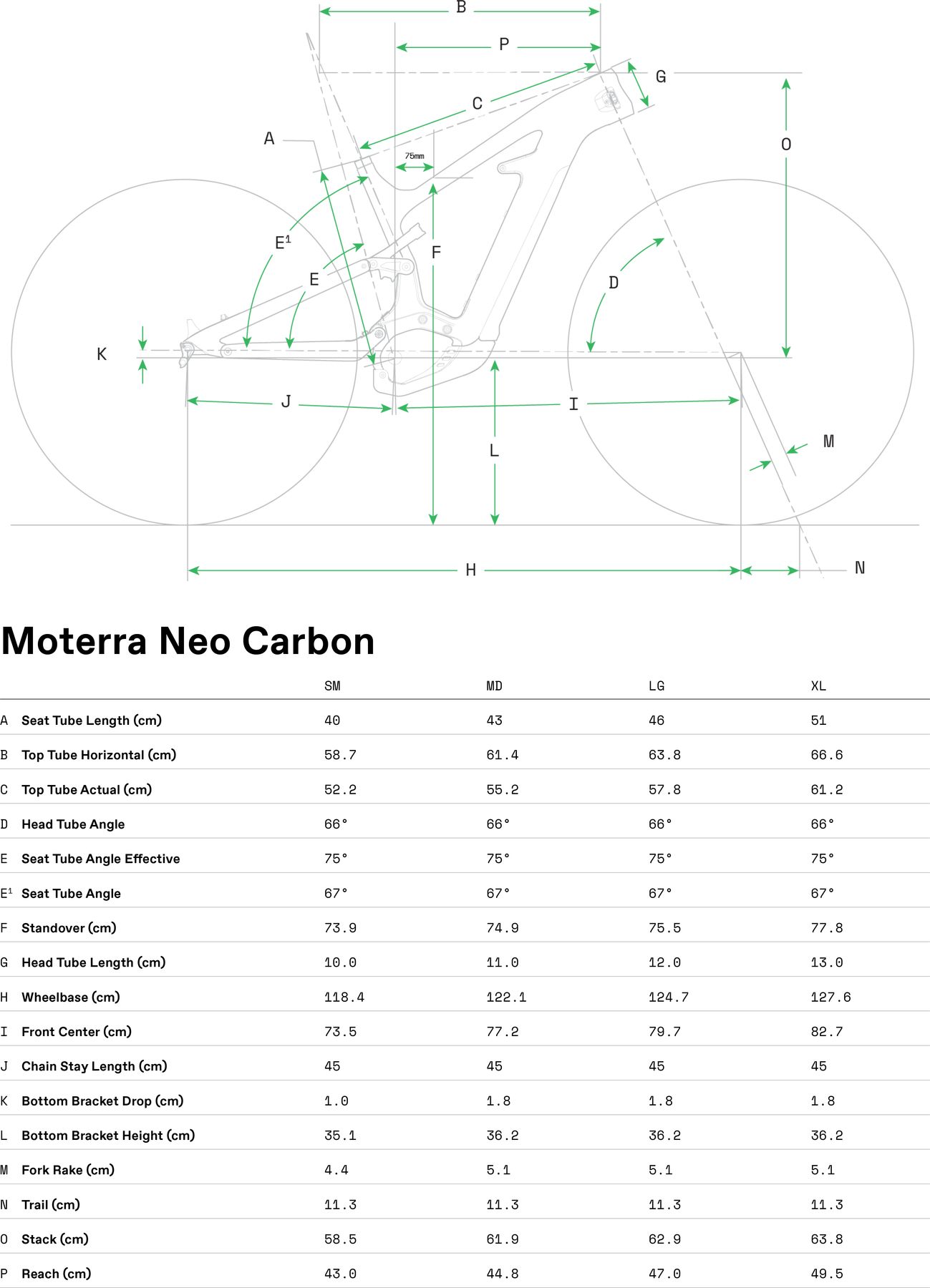

Geometry
