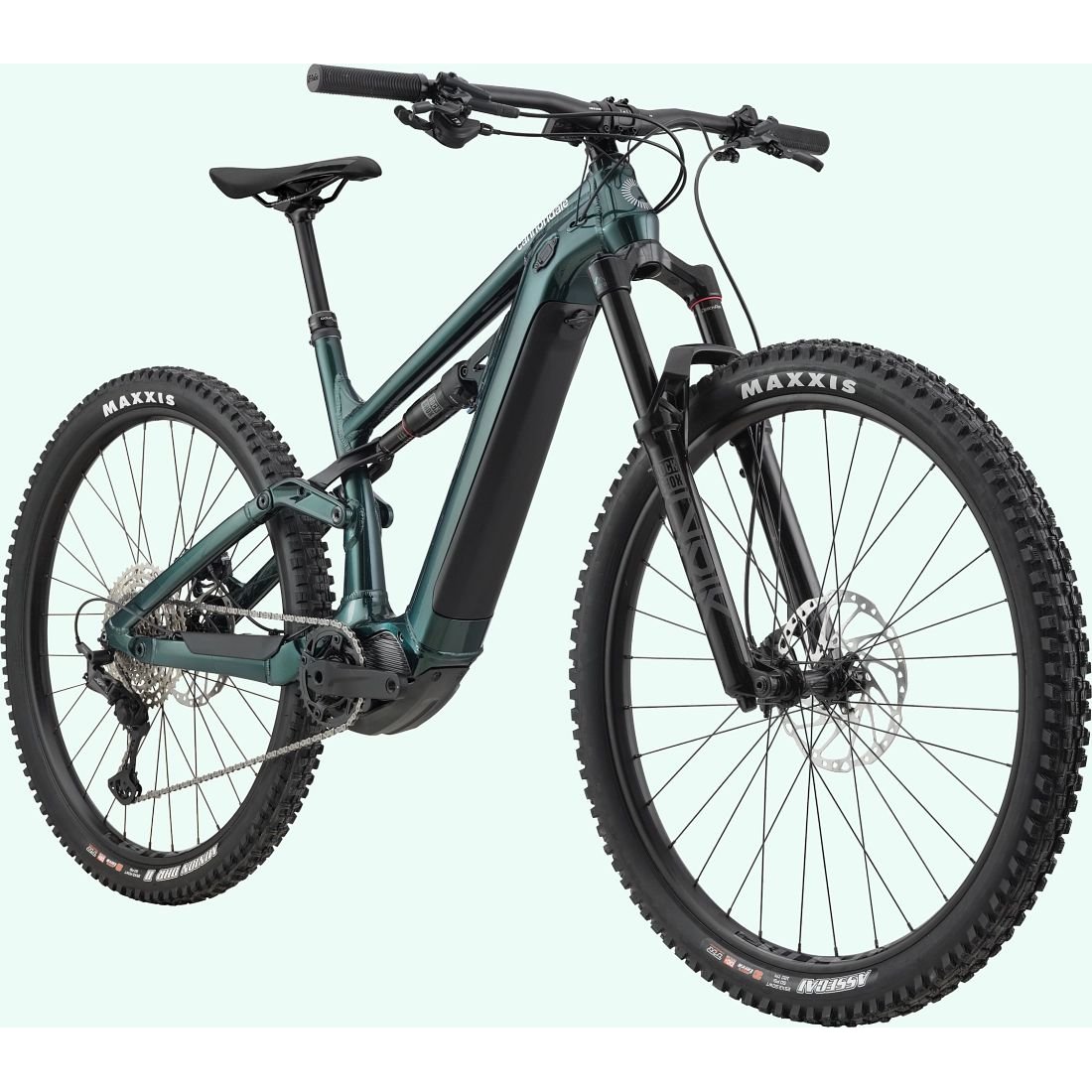

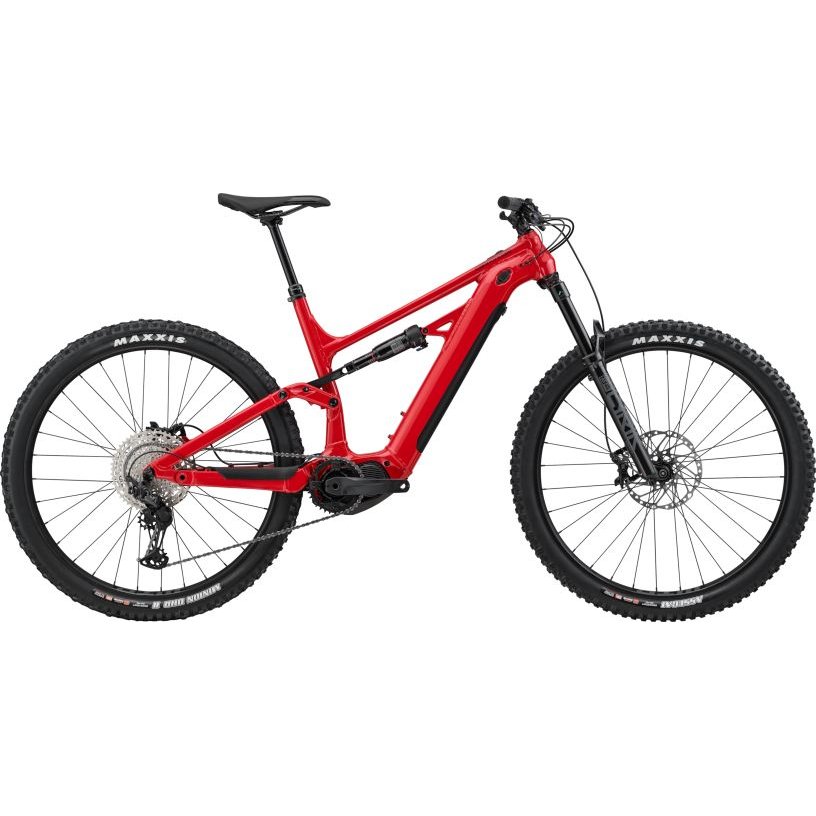

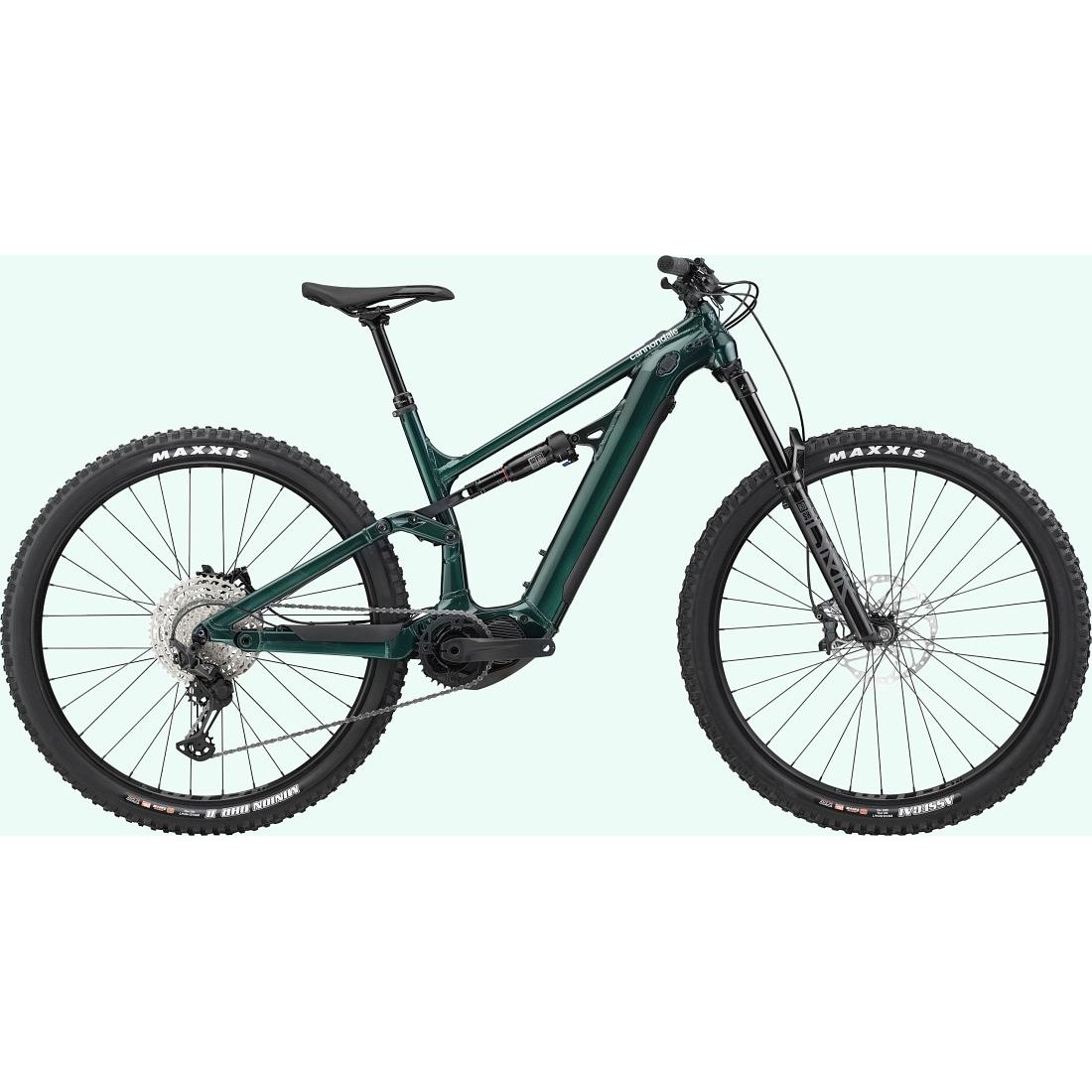

Cannondale Moterra S1 Electric Mountain Bike

A trail-slaying aluminum e-mountain bike, ready to crank up the fun factor on any terrain, anywhere.

Features

• SmartForm C2 Alloy Frame / RockShox Lyrik Select+ fork / 150mm travel
• Shimano Steps EP800 drive system with 630Wh battery
• Shimano XT/SLX shifting / SLX 4-piston brakes

Specifications

• Frame: 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
• Fork: RockShox Lyrik Select +, 150mm, Solo Air, 15x110mm stealth thru-axle, tapered steerer, 51mm offset

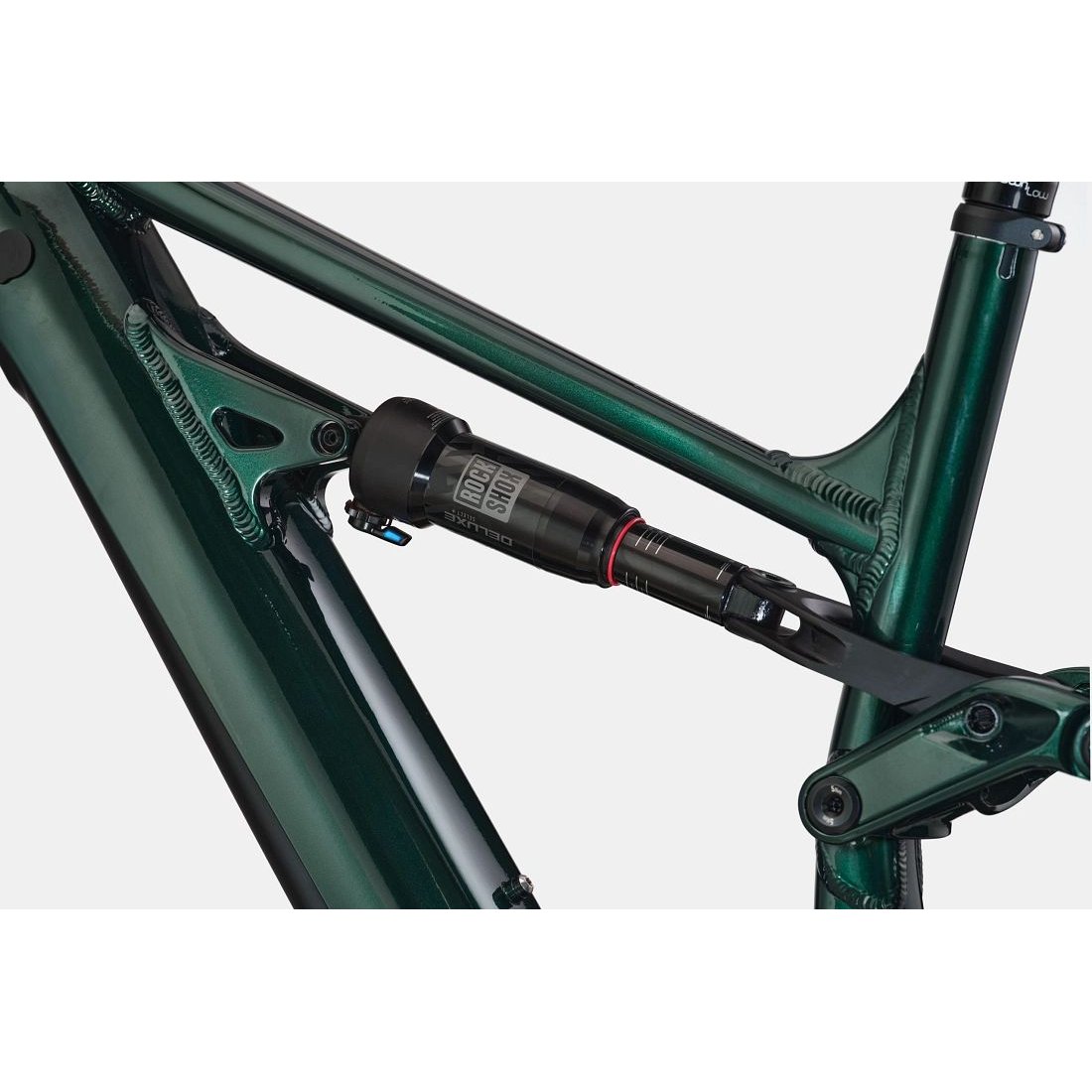

• Rear Shock: RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound
• Rims: WTB ST i30 TCS, 32h, tubeless ready
• Hubs: (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT400, 12x148mm thru-axle
• Spokes: Stainless steel, 14g
• Tires: (F) Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 29 x 2.6", 3C, EXO+, tubeless ready
• Pedals: Not included
• Crank: FSA E-Bike, 165mm, Shimano 12-speed, 34T
• Chain: Shimano M6100 Hyperglide, 12-speed
• Rear Cogs: Shimano Deore, Hyperglide, 10-51, 12-speed
• Front Derailleur: N/A

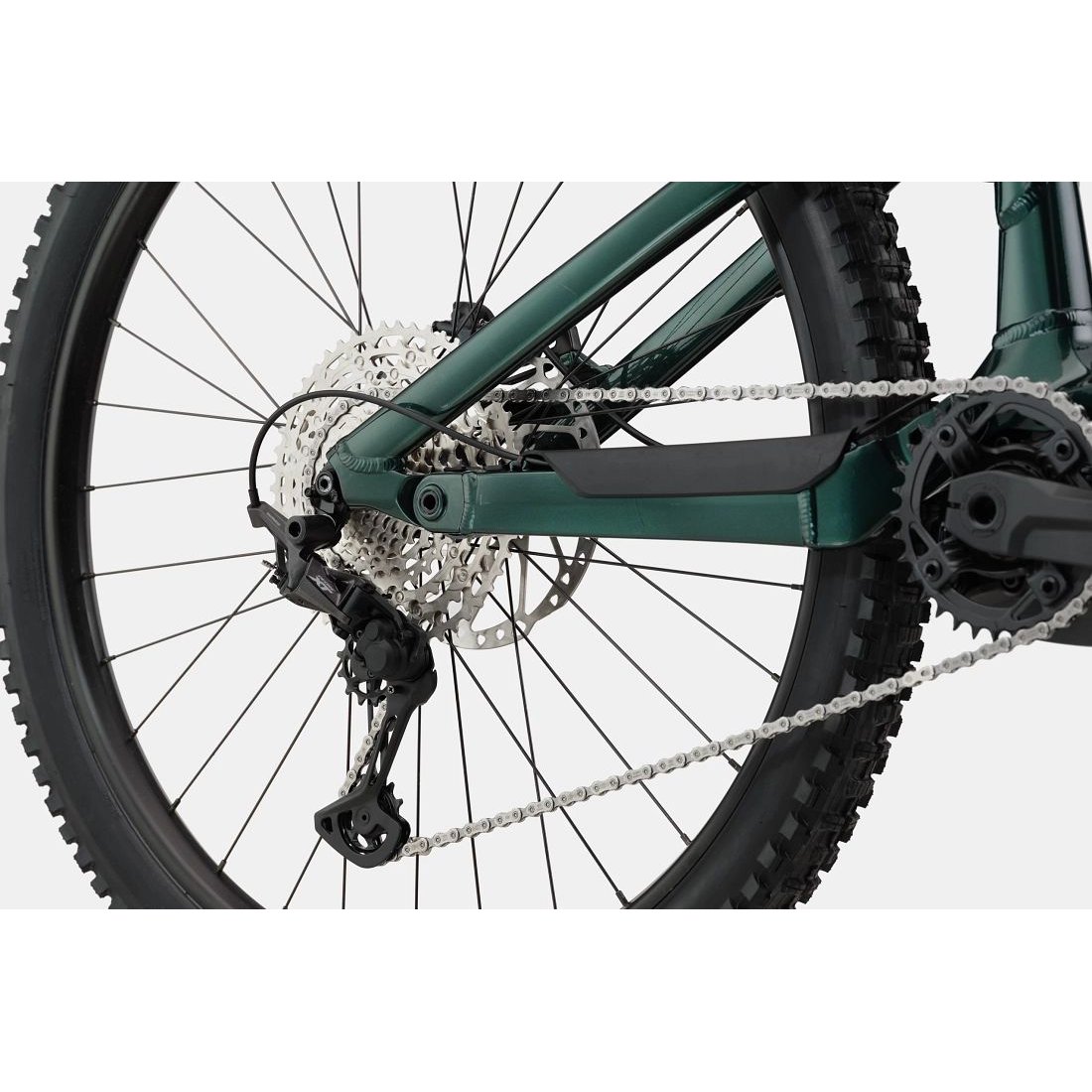

• Rear Derailleur: Shimano XT
• Shifters: Shimano SLX 12-speed
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

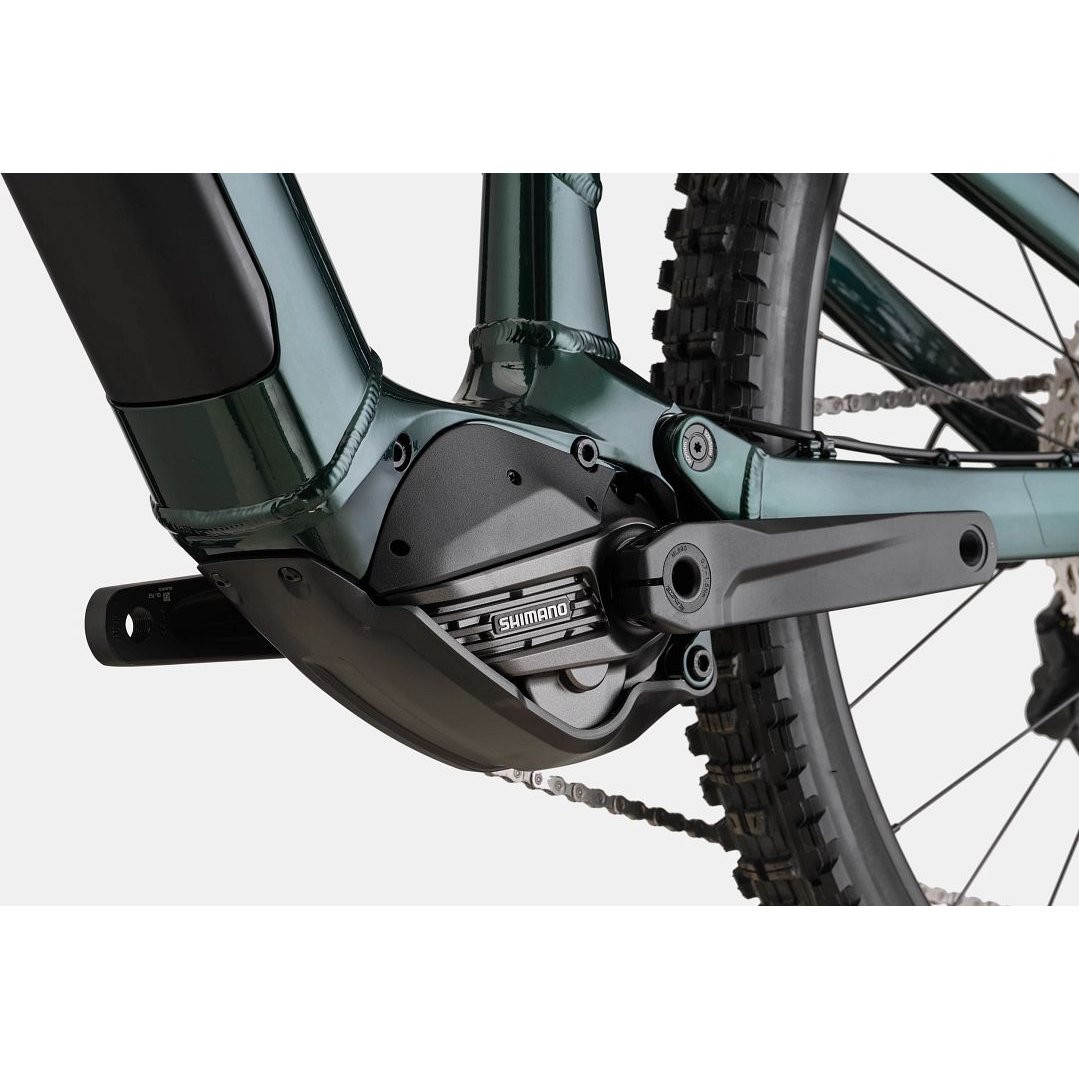

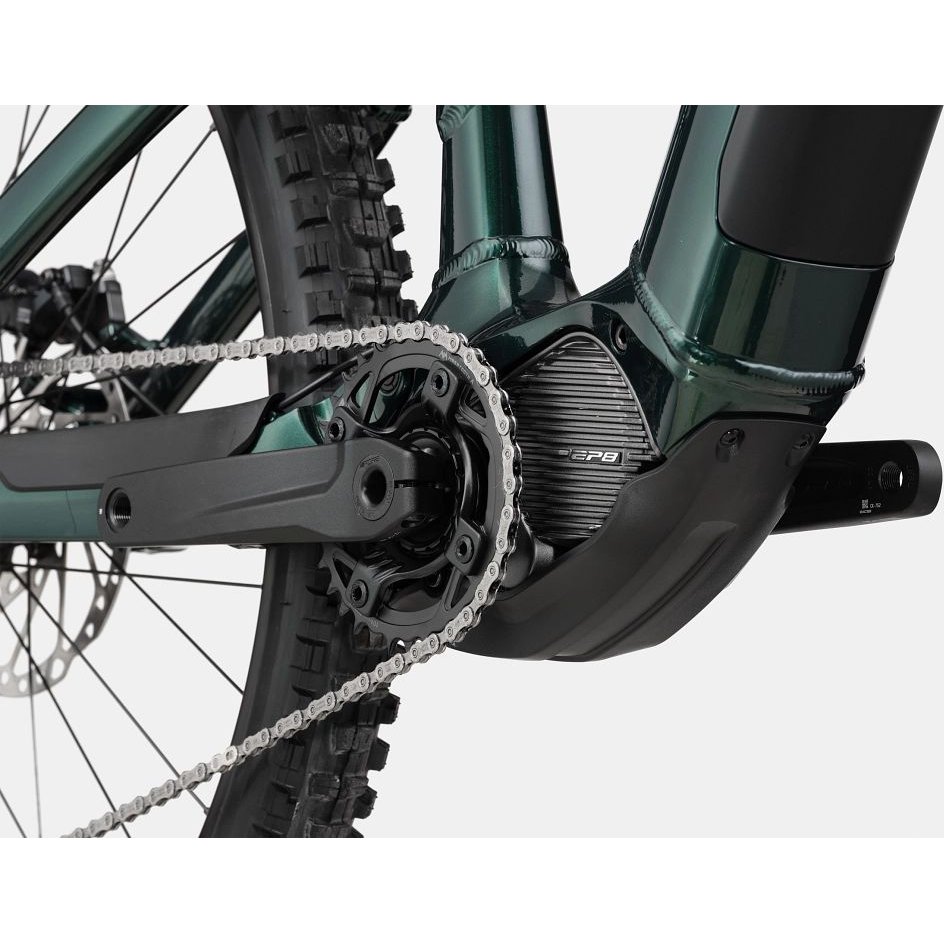

• E-Bike Drive Unit: Shimano EP800
• Grips: Fabric Funguy
• E-Bike Battery: Shimano BT-E8036, 630Wh
• Stem: Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
• E-Bike Display: Shimano SC-EM800, Bluetooth enabled
• Headset: Integrated Sealed Bearing, Tapered
• E-Bike Charger: Shimano Battery Charger 2A
• Brakes: Shimano SLX 4-piston hydraulic disc, RT64 rotors 203mm/203mm
• Saddle: Cannondale Ergo XC
• Seatpost: Cannondale DownLow dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
• Sizes: SM, MD, LG, XL

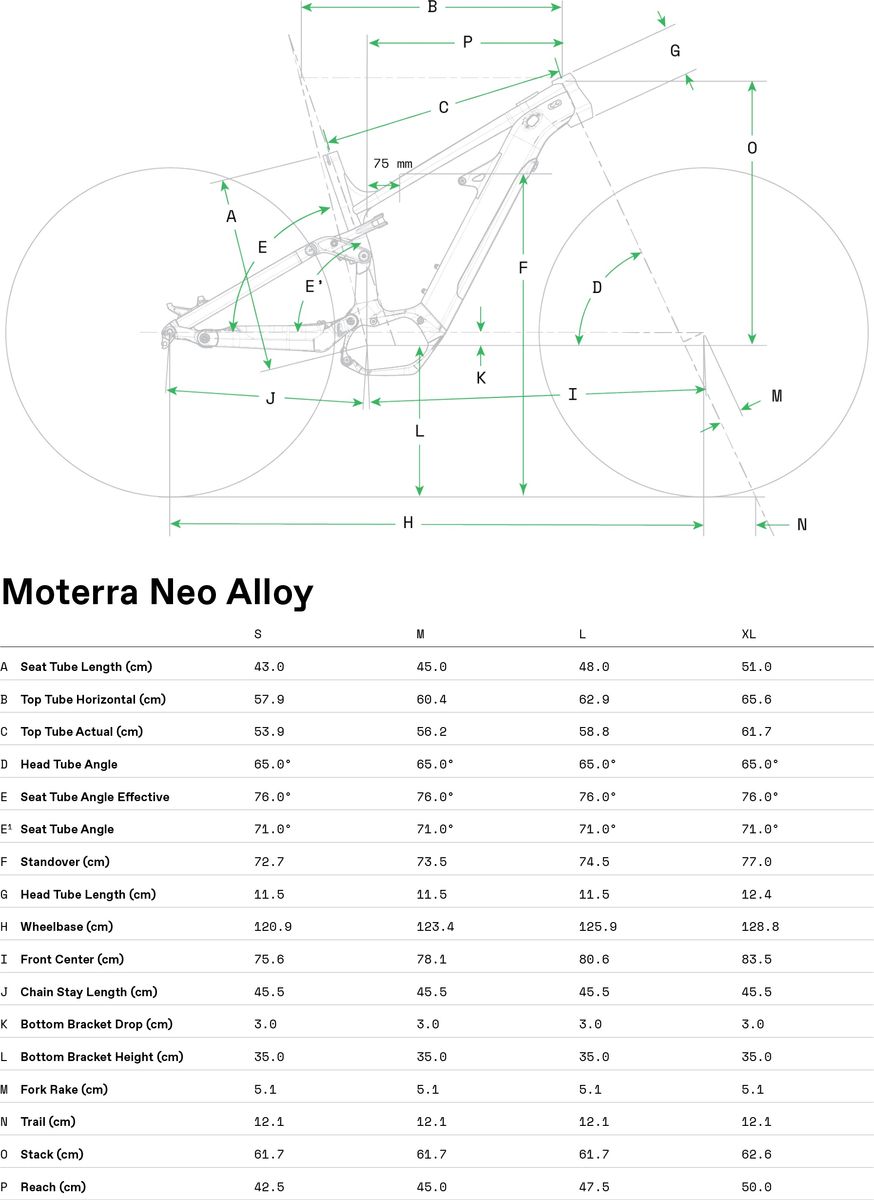

Geometry
